Evaporative Check Valve: Testing and Inspection




Inspection

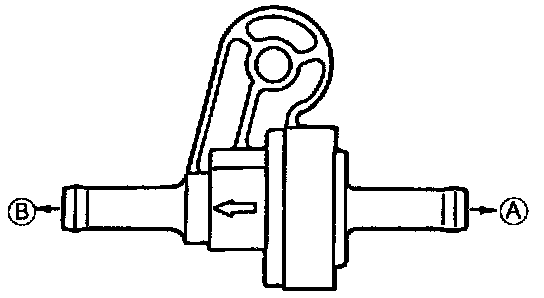

1. Remove the valve.

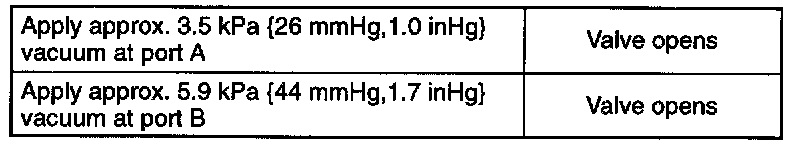

2. Check the operation of the valve by using a vacuum pump.
