Condenser Fan Motor: Testing and Inspection

1. Disconnect the condenser fan connector.

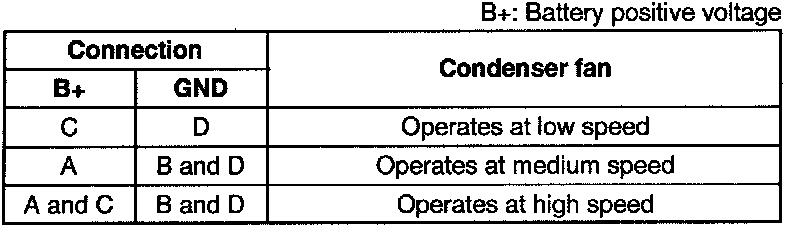

2. Connect battery positive voltage to the condenser fan as shown and verify that the condenser fan operates.
3. If the condenser fan does not operate or the operating speed is too low, replace the condenser fan.
