Removal

1. Obtain the code number and deactivate the audio antitheft system before disconnecting the battery. Accessories and Optional Equipment
2. Disconnect the negative battery cable.
3. On level ground, jack up the vehicle and support it evenly on safety stands.
4. Drain the transmission oil into a container.
5. Remove in the order shown in the image, referring to Removal Note.






Removal Note
Power Plant Frame (PPF)
1. Disconnect the wire harness from the PPF

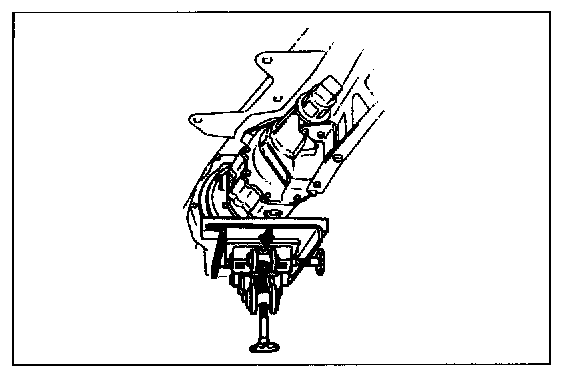

2. Support the transmission with a jack.






3. Remove the PPF bracket.

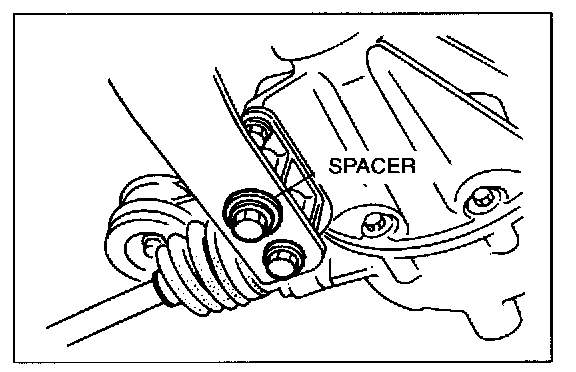

4. Remove the differential-side bolts, and pry out the spacer.

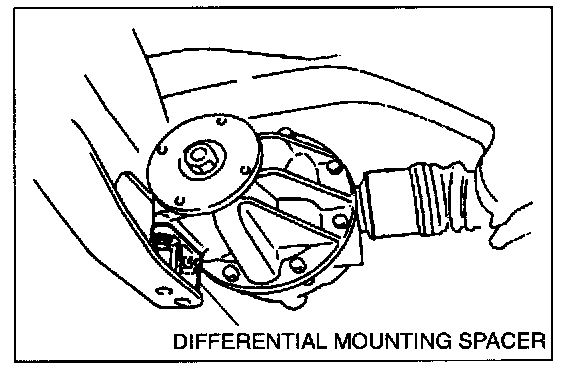

5. Remove the differential mounting spacer.

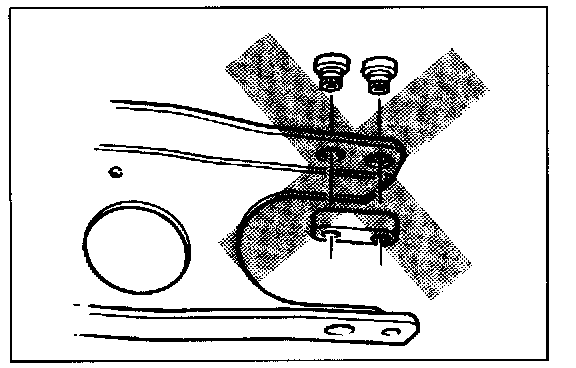

6. Remove the transmission-side bolts, and remove the PPF. Do not remove the spacers from the PPF. If they are removed, replace the PPF as an assembly.

NOTE: If the sleeve can not removed easily, tap the side of sleeve with the plastic hammer.

7. Remove the sleeve.

Transmission
1. Support the transmission with a transmission jack.

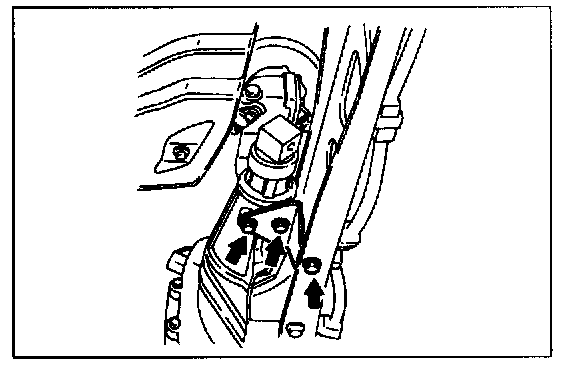

2. Loosen the transmission installation bolts.

CAUTION: Shaking the transmission could damage the crank angle sensor on the engine. When removing the transmission, do not shake it up and down or side to side.

3. Remove the transmission.
