Valve Body: Testing and Inspection

INSPECTION
- On level ground, jack up the vehicle and support it evenly on safety stands.
- Disconnect the solenoid valve connector.

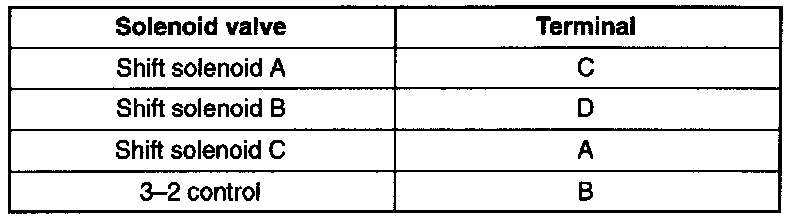

- Measure resistance between each terminal and ground.

Resistance: 13 - 27 ohms

- If not correct, check the wiring harness for an open or short circuit. Replace the solenoid valve.
