Torque Converter Clutch Solenoid: Testing and Inspection

INSPECTION

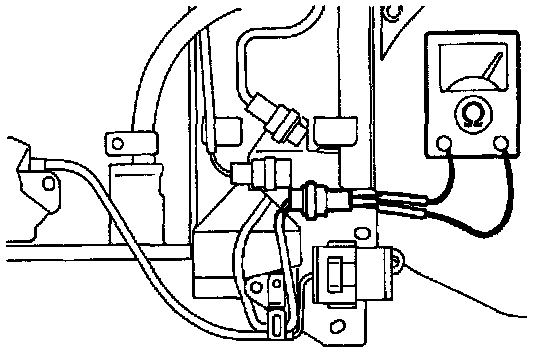

- Disconnect the solenoid valve connector.
- Measure the resistance between the terminals.

Resistance: 13 - 25 ohms

- If not correct, replace the solenoid valve.
