Tail Pipe - Breakage

Bulletin No.: 015/97
Issued: 06/19/97
Revised:

Category
F

Applicable Model/s
MX-5 '96-'97

Subject:
TAIL PIPE BREAKAGE

APPLICABLE MODELS
1996 - 97 MX-5 (NA) with a VIN of NA35**V0735634 and lower.

DESCRIPTION

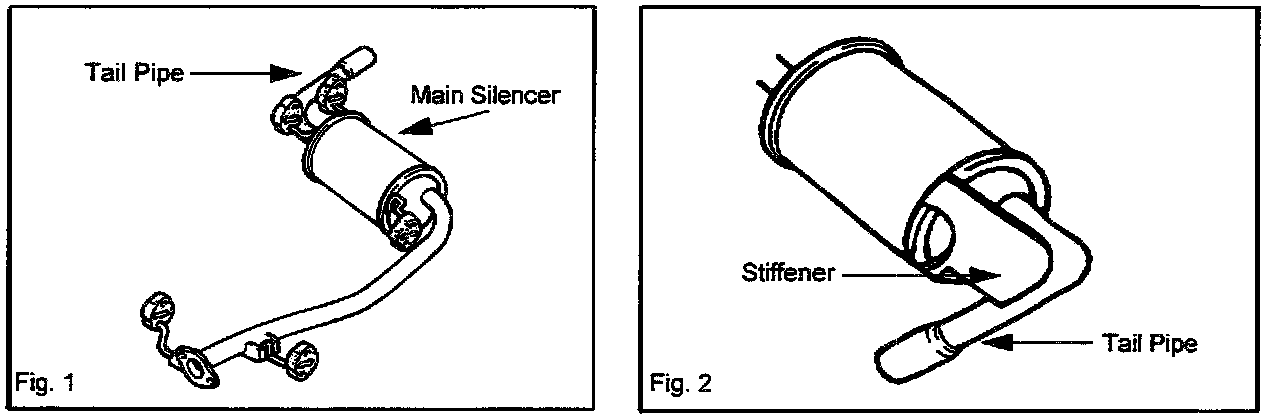

The tail pipe may be broken at the weld by exhaust gas resonance. To improve the strength, a stiffener has been added to the location as shown. Customers complaining of this concern should have the main silencer replaced with a modified one.

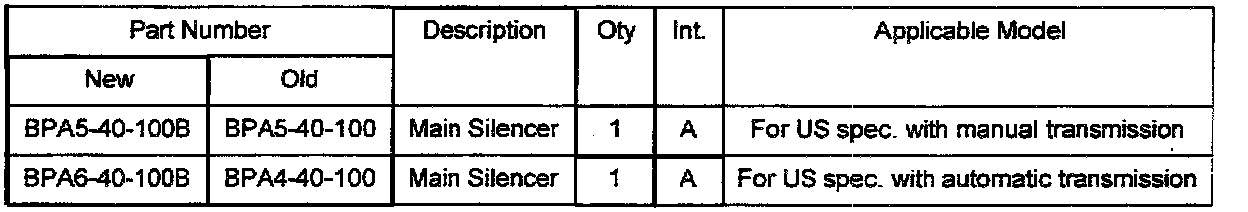

PARTS INFORMATION

WARRANTY INFORMATION

(Applies To Verified Customer Complaints on Vehicles Covered Under Normal Warranty. Refer To The SRT Microfiche For Warranty Term Information.)

Warranty Type: A
Symptom Code: 78
Damage Code: 9A
Causal Part No.: See the Parts Information
Quantity: 1
Operation Number: F0210XRX
Labor Hours: 0.5 Hrs.
