Throttle Cable/Linkage: Service and Repair

ACCELERATOR CABLE
Replacement
- Remove the accelerator cable from the throttle lever.
- Loosen the throttle adjustment nuts and remove the cable from the bracket.

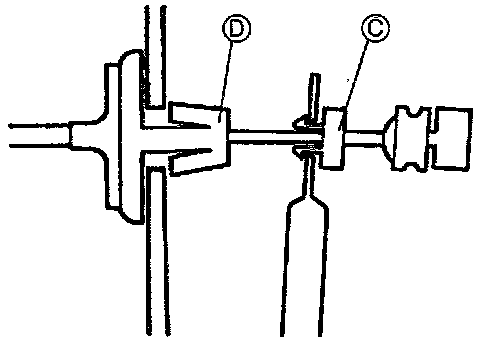

- Compress the tabs of stay "C" and remove the accelerator cable from the pedal arm.
- Compress the tabs of stay "D" and push the cable through the firewall.
- Remove the accelerator cable.
- Install in the reverse order of removal.
- Adjust deflection of the cable after installation.
