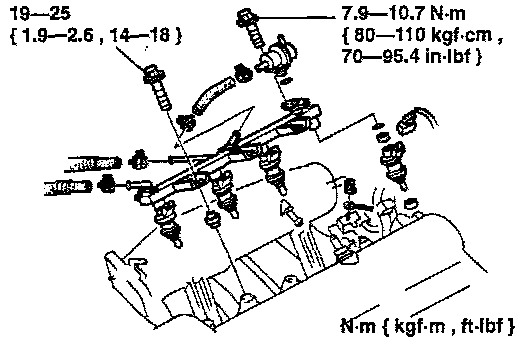

Intake Manifold

REMOVAL

WARNING: Fuel line spills and leaks are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedures".

- Remove the throttle body.
- Disconnect the vacuum hoses.
- Remove the accelerator cable.
- Disconnect the fuel hoses.
- Disconnect the connectors from the fuel injectors.
- Remove the fuel distributor and fuel injectors.
- Remove the fuel injector harness.
- Remove the intake manifold bracket.
- Remove the intake manifold.

INSTALLATION
Install in the reverse order of removal, using a new mounting gasket.
