Component Locations

INTAKE COMPONENT LOCATIONS

Warning:Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.

Fuel in the fuel system is under high pressure when the engine is not running.

Warning: Fuel line spills and leaks are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the following "Fuel Line Safety Procedures".

FUEL LINE SAFETY PROCEDURES
Release the fuel pressure before disconnecting a fuel line.
- Start the engine.
- Remove the fuel pump relay.
- After the engine stalls, turn the ignition switch to OFF.
- Install the fuel pump relay.
Avoid leakage.
- When disconnecting a fuel line hose, wrap a rag around it to protect against fuel leakage.
- Plug the hose after removal.
Install hose clamps to secure the fuel pressure gauge connections.
- Drain the engine coolant.

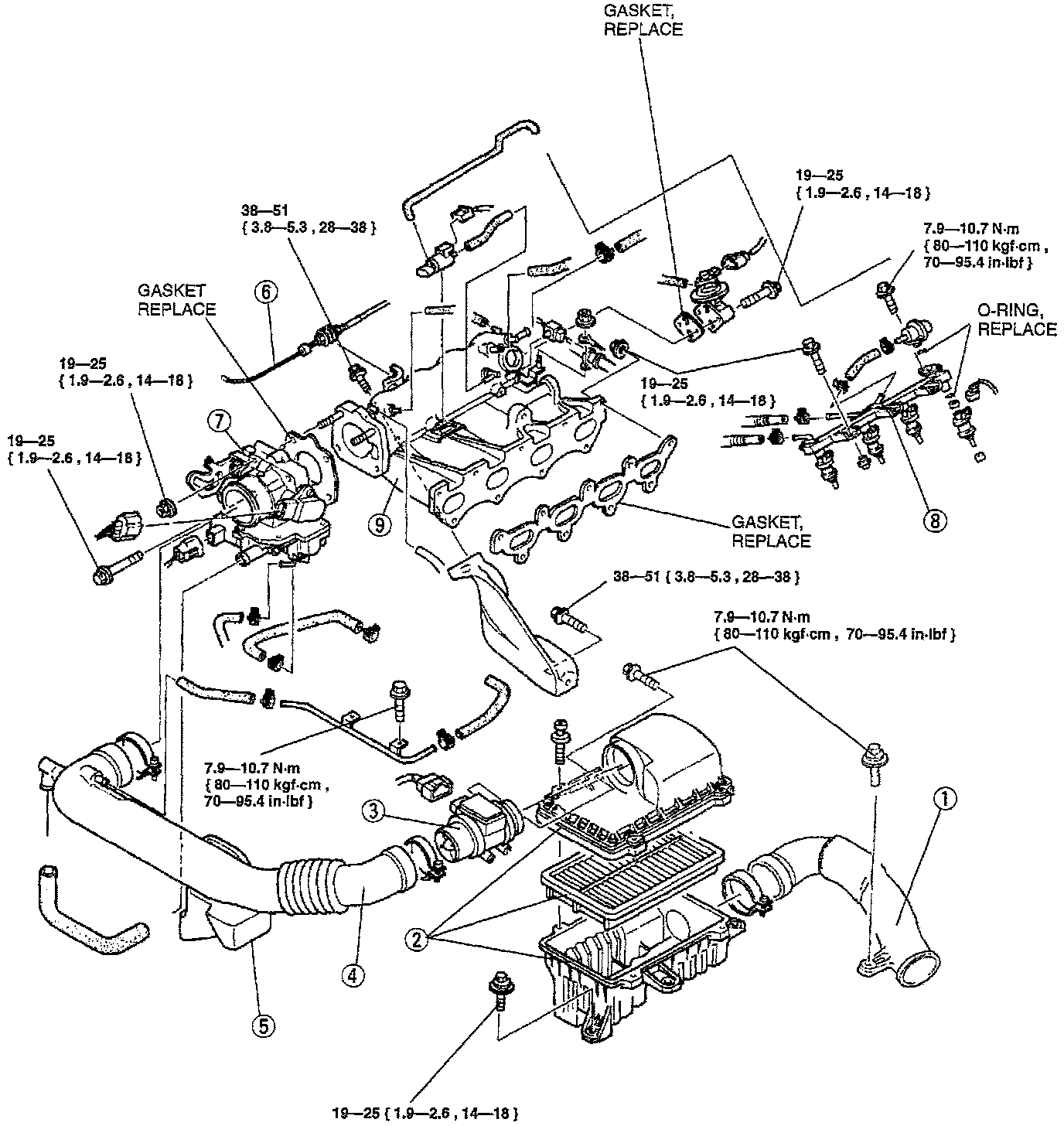

- Remove in the order shown in the figure.
- Check the components for damage and repair or replace as necessary.
- Install in the reverse order of removal, using new gaskets.
- Refill the engine coolant.





1. Air duct
2. Air cleaner
3. Mass air flow sensor
4. Air hose
5. Resonance chamber
6. Accelerator pedal/cable
7. Throttle body
8. Fuel distributor
9. Intake manifold
