Fuel Pump Relay: Testing and Inspection

INSPECTION

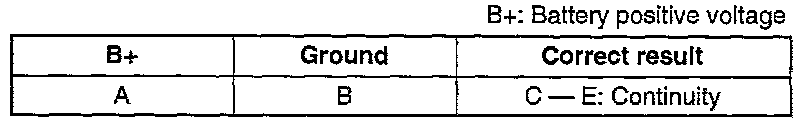

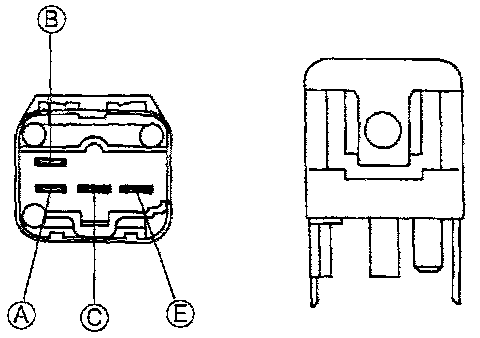

Apply battery positive voltage and a ground to the terminals below and check the fuel pump relay operation as described. If not as specified replace the fuel pump relay.
