Fuel Pressure Regulator: Service and Repair

REPLACEMENT

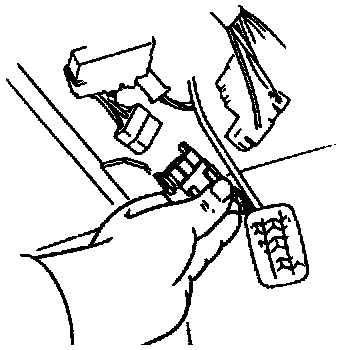

WARNING: Fuel line spills and leaks are dangerous. Fuel can ignite and cause serious injuries or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedures".





- Disconnect the vacuum hose.
- Disconnect the fuel return hose.

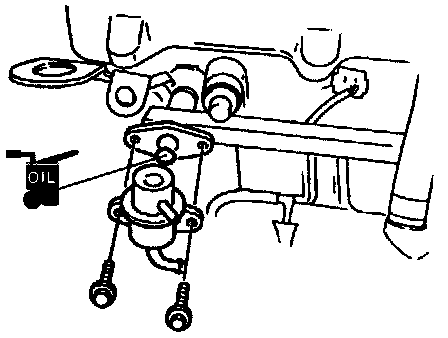

- Remove the pressure regulator.
- Use new 0-ring.
- Install in the reverse order of removal.

Tightening torque: 7.9 - 10.7 Nm (70 - 95.4 in.lbs.)
