Accelerator Pedal: Adjustments

ACCELERATOR CABLE ADJUSTMENT

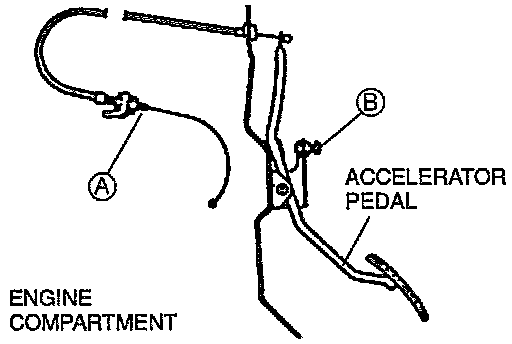

- Check deflection of the cable. If deflection exceeds

1 - 3 mm (0.039 - 0.118 in.),

adjust it by turning nut "A".
- Depress the accelerator pedal to the floor and verify that the throttle valve opens fully. Adjust with bolt "B" if necessary.
