Canister Purge Solenoid: Testing and Inspection

Inspection
- Disconnect the vacuum hoses from the purge solenoid valve.
- Verify that no air flows through the purge solenoid valve.

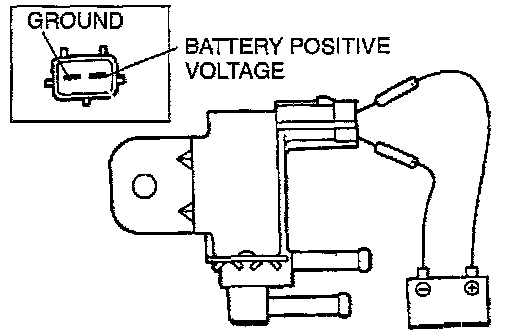

- Disconnect the purge solenoid valve connector and connect battery positive voltage and a ground to the terminals of the purge solenoid valve.
- Verify that air flows through the valve.
- It not as specified, replace the purge solenoid valve.
