Camshaft Gear/Sprocket: Service and Repair
Camshaft Pulley

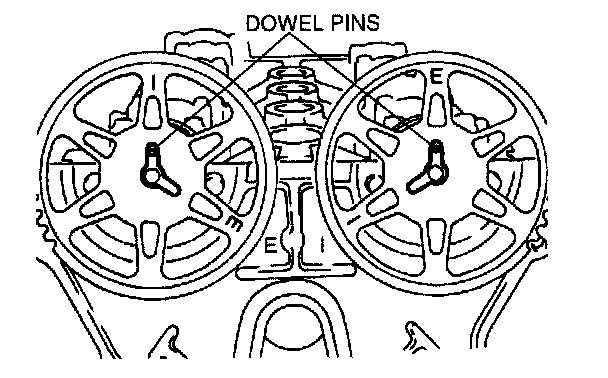

1. Turn the camshafts until the camshaft dowel pins face straight up.
2. Install the camshaft pulleys with the I mark (intake side) or the E mark (exhaust side) straight up.
Camshaft Pulley
1. Turn the camshafts until the camshaft dowel pins face straight up.
2. Install the camshaft pulleys with the I mark (intake side) or the E mark (exhaust side) straight up.
