Cooling System: Description and Operation

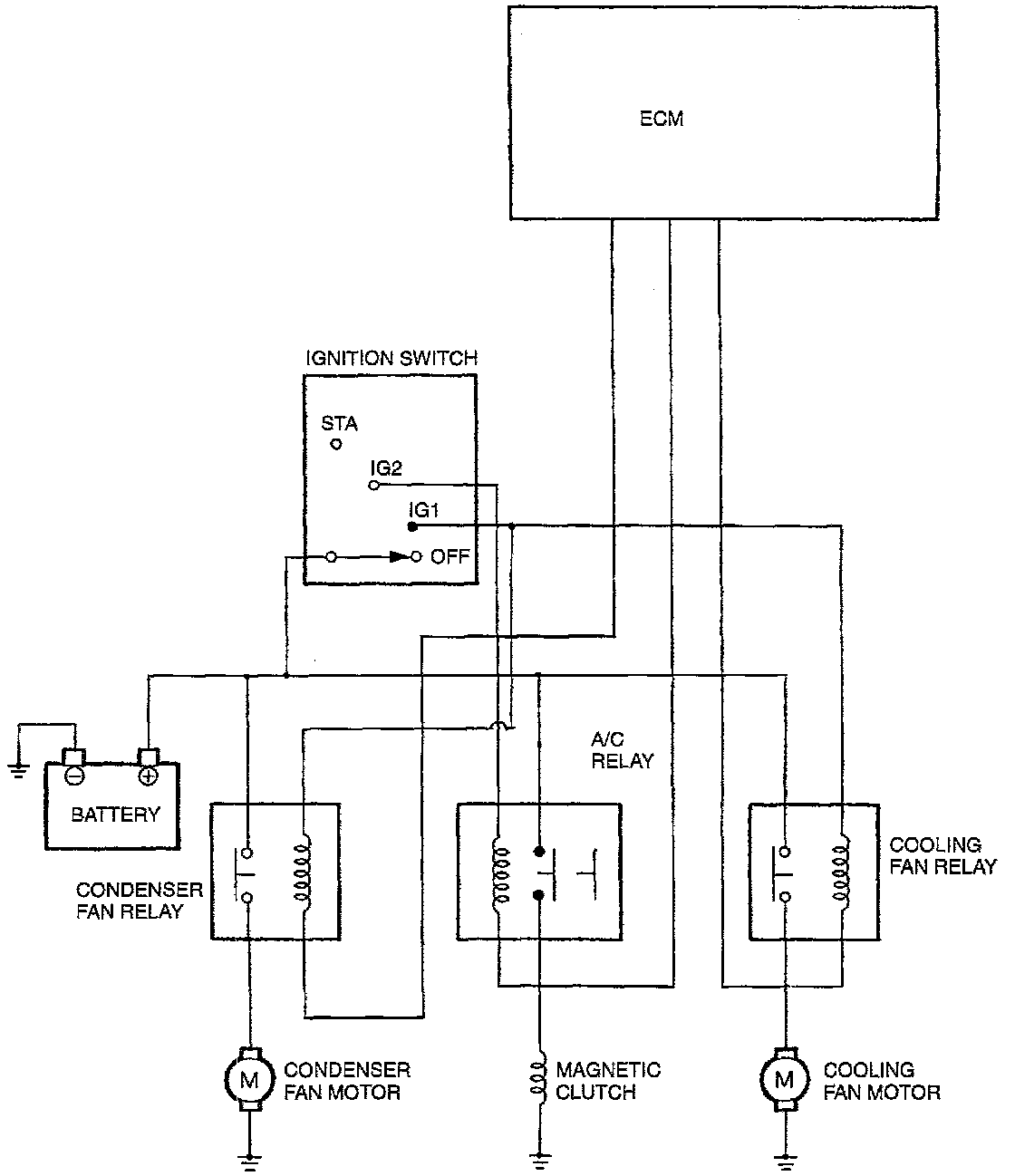

- The ECM controls the cooling fan and the condenser fan to provide more efficient fan control. This improves the performance reliability and stability during idling of an engine.
- The cooling fan is normal when it start to operate with the system selector (49 B019 9A0) test switch at SELF TEST and the accelerator pedal is depressed (Ignition switch ON).
