Valve Relay

1. Using an ohmmeter, check continuity of relay terminals, refer to Fig. 115.

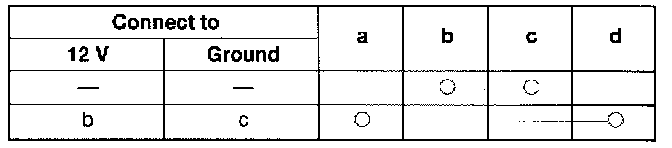

Fig. 115 Valve Relay Continuity Inspection:

2. If valve relay continuity is not as specified, replace the relay.
