Troubleshooting - ABS

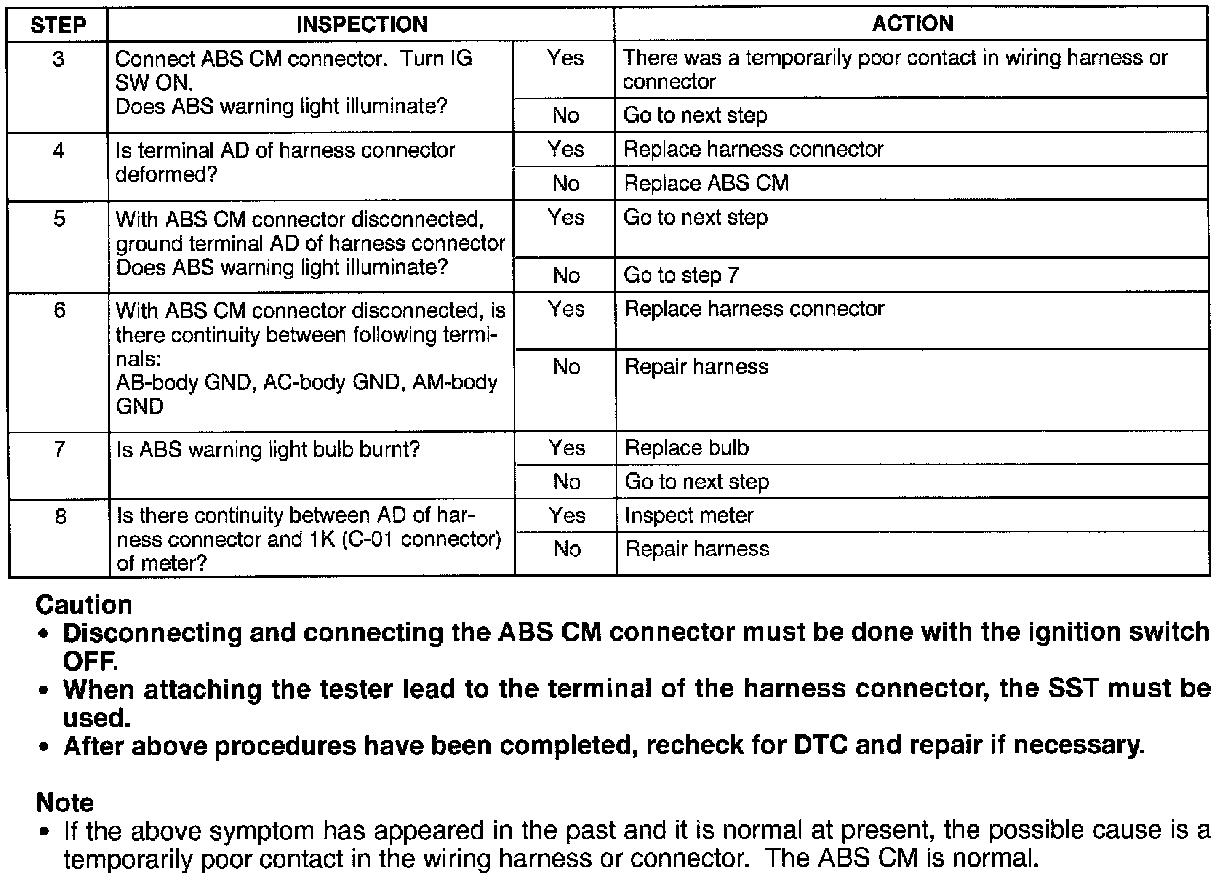

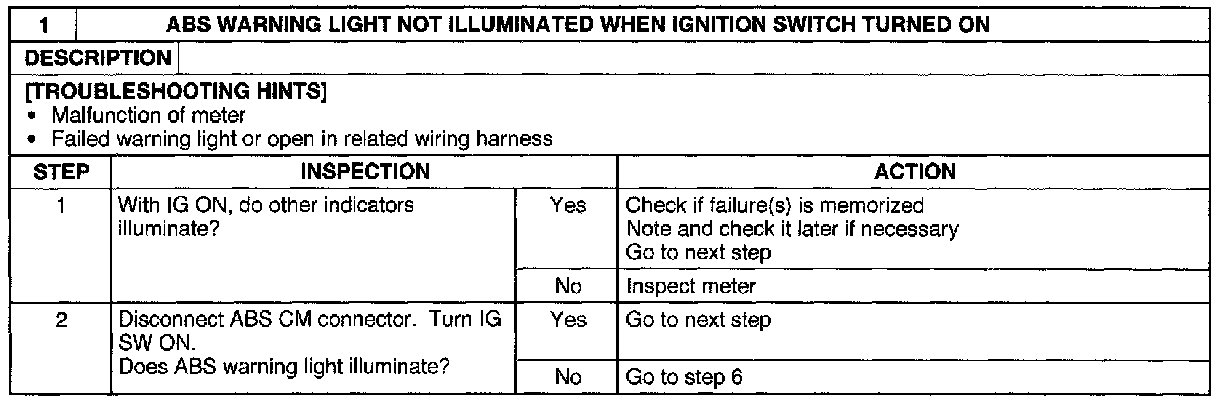

Fig. 2 Troubleshooting Chart (Part 1 Of 5):

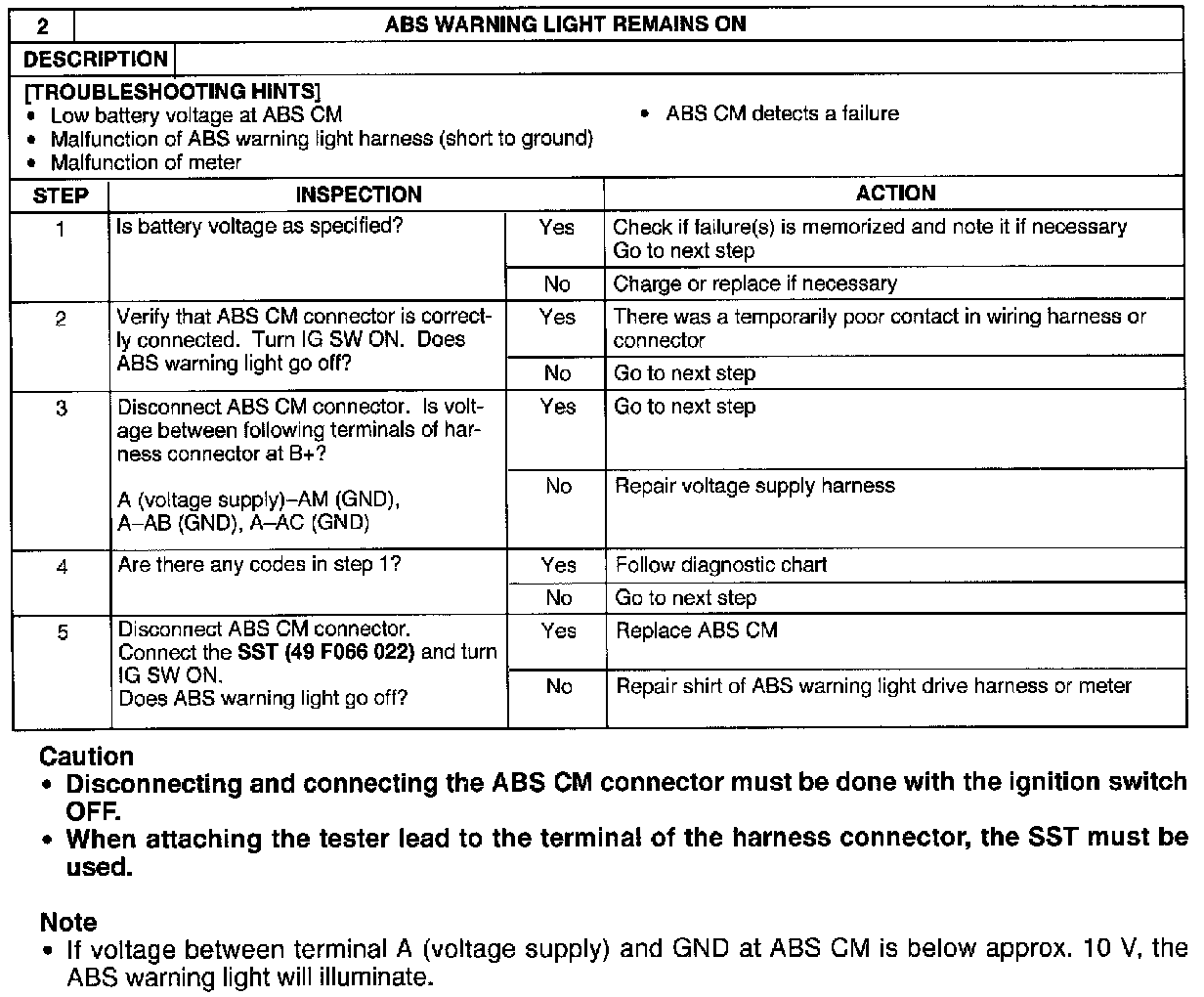

Fig. 2 Troubleshooting Chart (Part 2 Of 5):

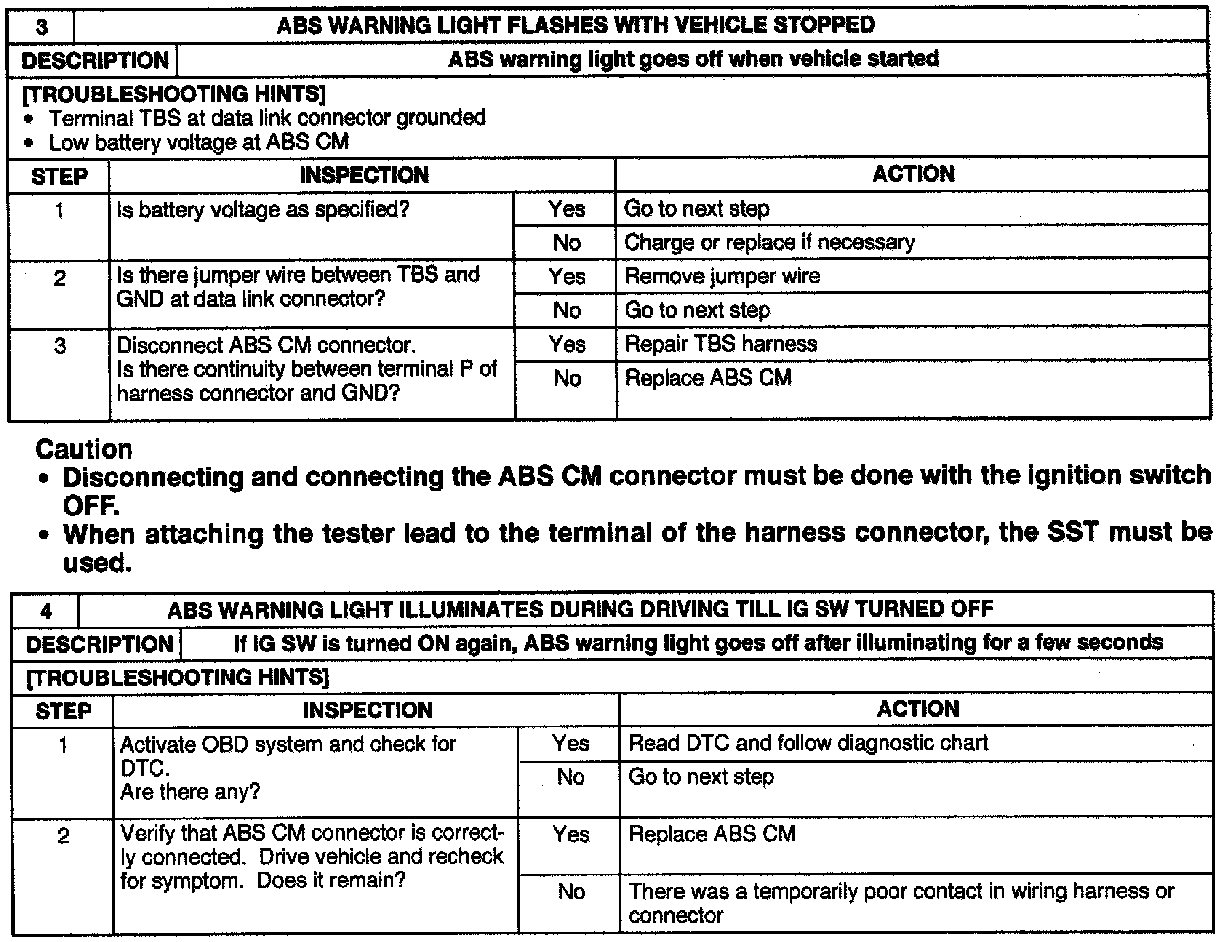

Fig. 2 Troubleshooting Chart (Part 3 Of 5):

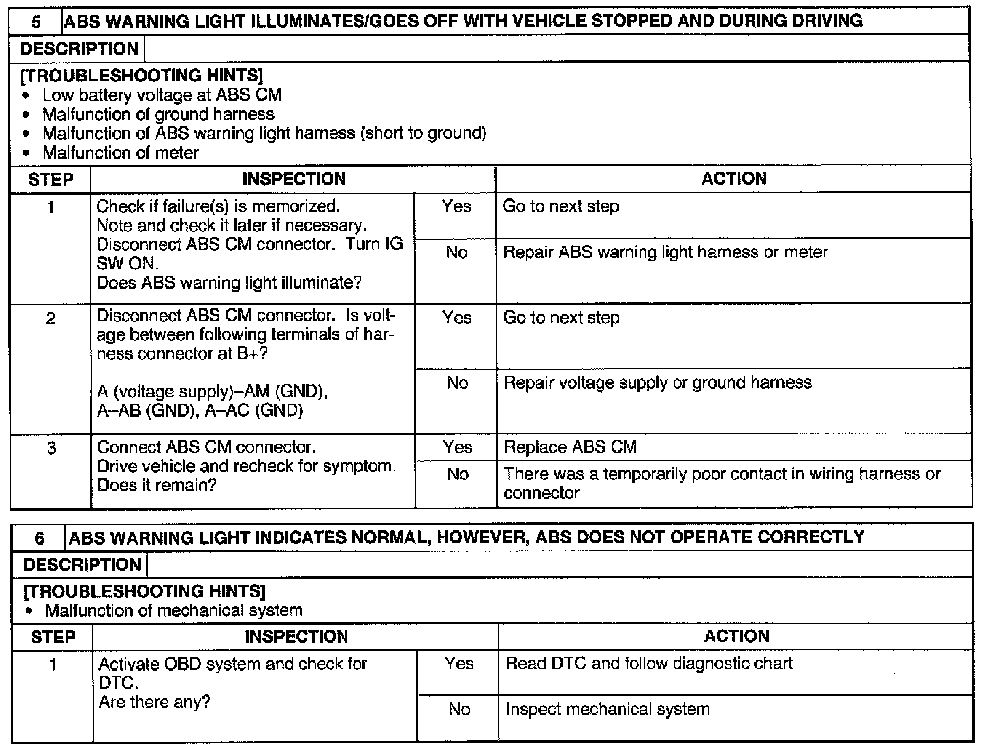

Fig. 2 Troubleshooting Chart (Part 4 Of 5):

Fig. 2 Troubleshooting Chart (Part 5 Of 5):

Refer to Fig. 2 for troubleshooting flowchart.
