Solenoid Valve (Including Valve Relay)
Solenoid Valve (Including Valve Relay)
Refer to
Fig. 111
for solenoid valve and valve relay testing procedure.

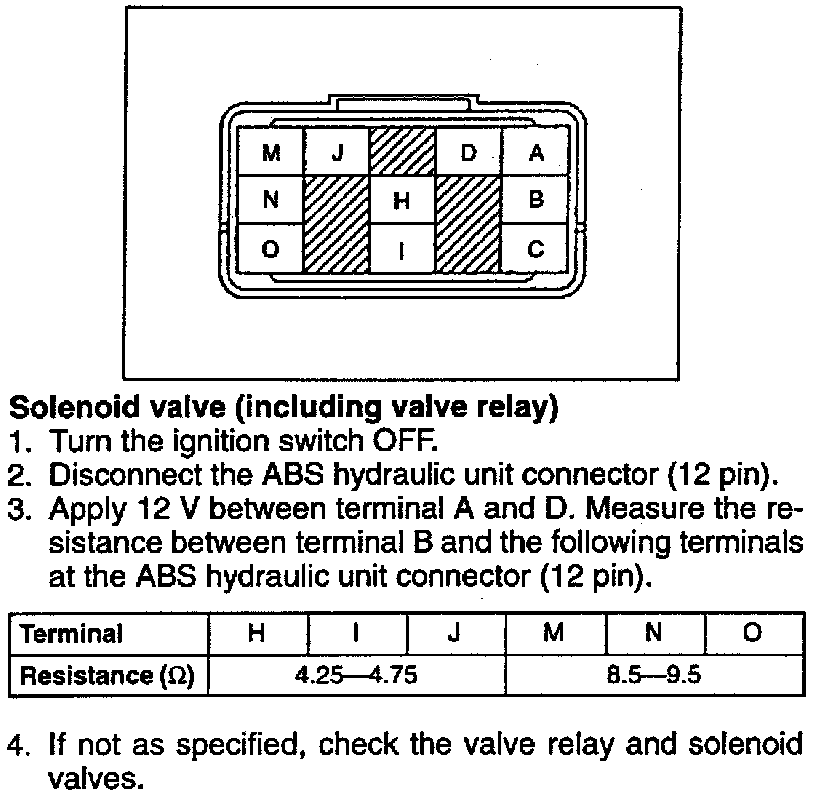

Fig. 111 Solenoid Valve & Valve Relay Test:
