Front Side Trim Removal/Installation
1.

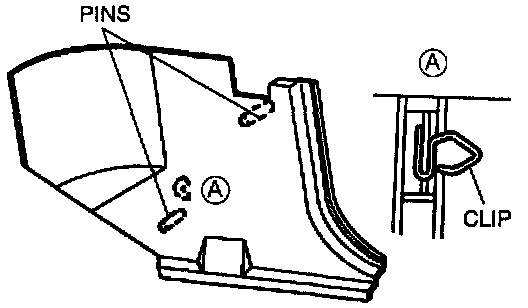

Pull the front side trim forward to disengage the clip and pins from the body, and remove the front side trim.
2.
Install in the reverse order of removal.
