Front Header Trim Removal/Installation
Front Header Trim Removal/Installation
1.
Remove the striker.
2.
Remove the sunvisor and adapter.
3.

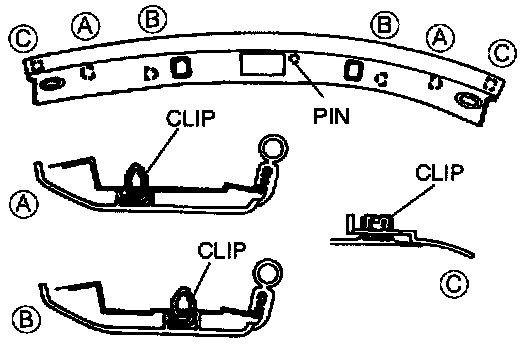

Pull the front header trim forward to disengage the clips from the body, and remove the front header
4.
Install in the reverse order of removal.
