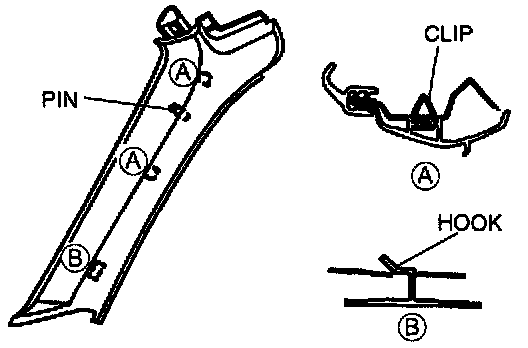

A-Pillar Trim Removal/Installation




1. Remove the front header trim.
2. Pull the A-pillar trim forward to disengage the clips and pin from the body.
3. Pull the A-pillar trim upward to disengage the hook from the body, and remove the A-pillar trim.
4. Install in the reverse order of removal.
