Center Panel Removal and Installation

1. Remove the rear console.
2. Remove the center louver.

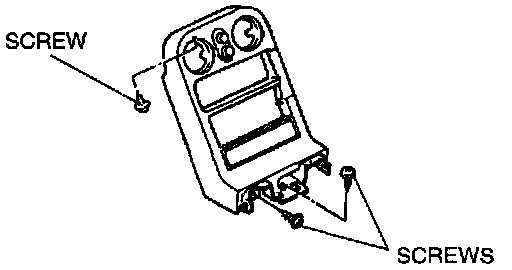

3. Remove the center panel installation screws.





4. Pull the center panel forward to disengage the clips from the body, and remove the center panel.
5. Install in the reverse order of removal.
