Antilock Brakes /Traction Control System

Refer to Fig. 24 for diagnostic trouble code interpretation and Fig. 25 through 28 for flow charts addressing specific diagnostic trouble codes.

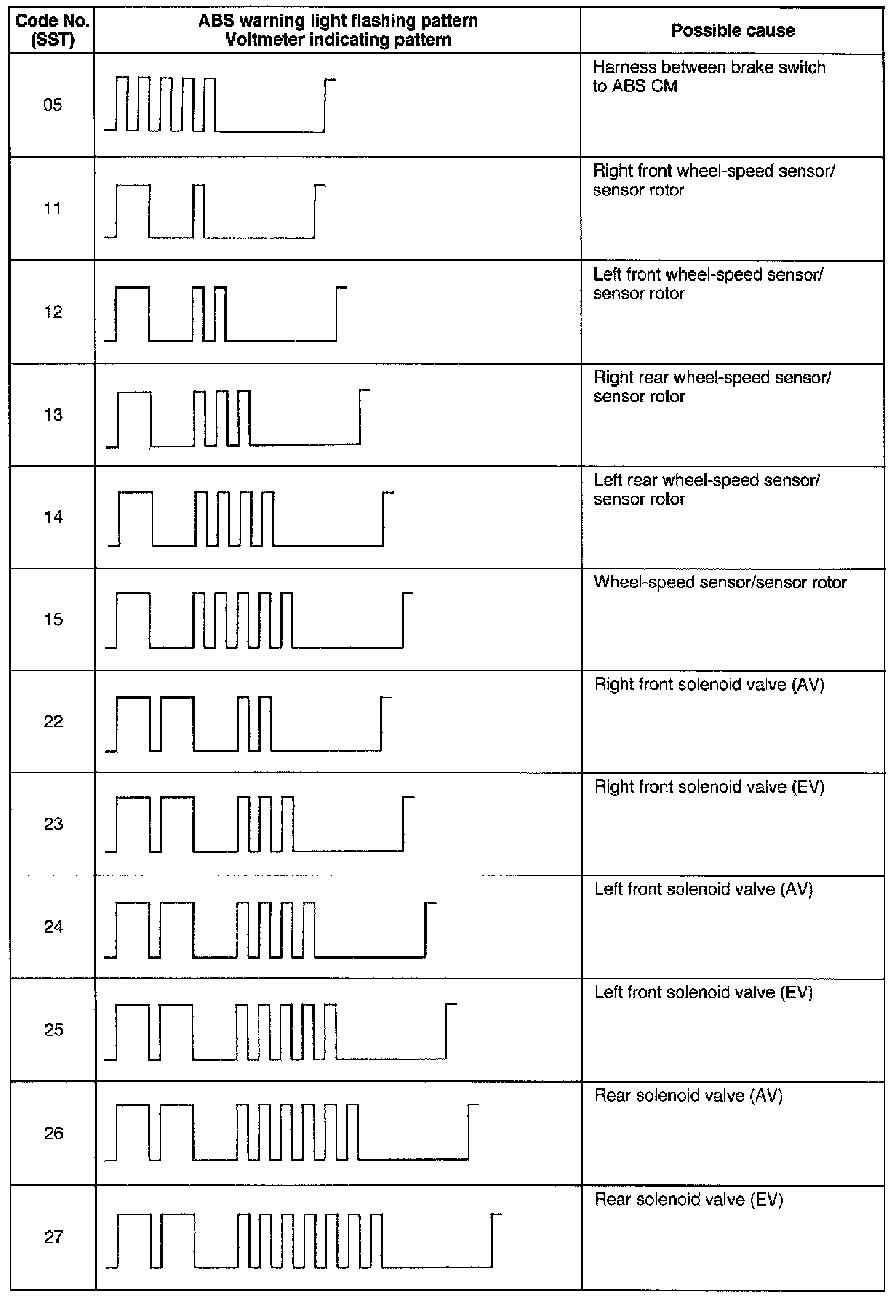

Fig. 24 Diagnostic Trouble Code Interpretation (Part 1 Of 2):

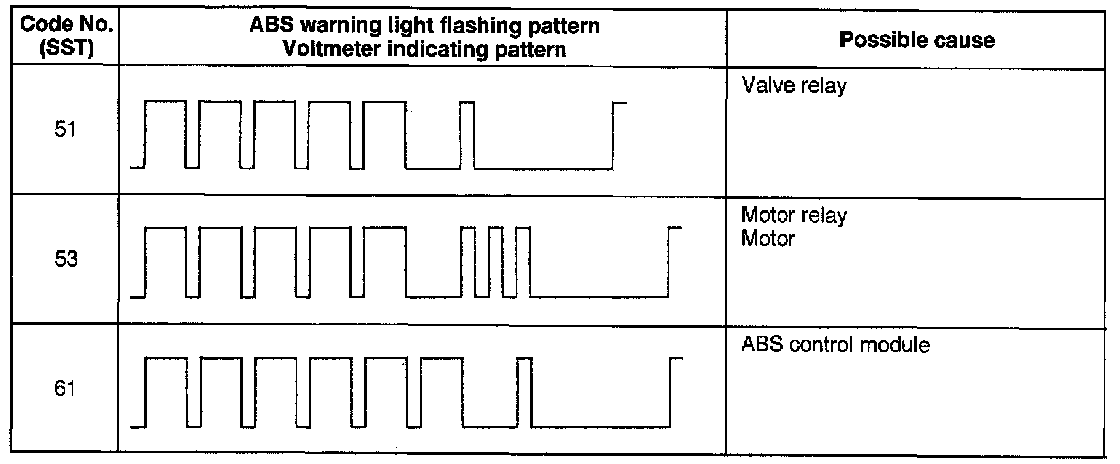

Fig. 24 Diagnostic Trouble Code Interpretation (Part 2 Of 2):

Fig. 25 Code 05: ABS Harness Between Brake Light & Control Module:

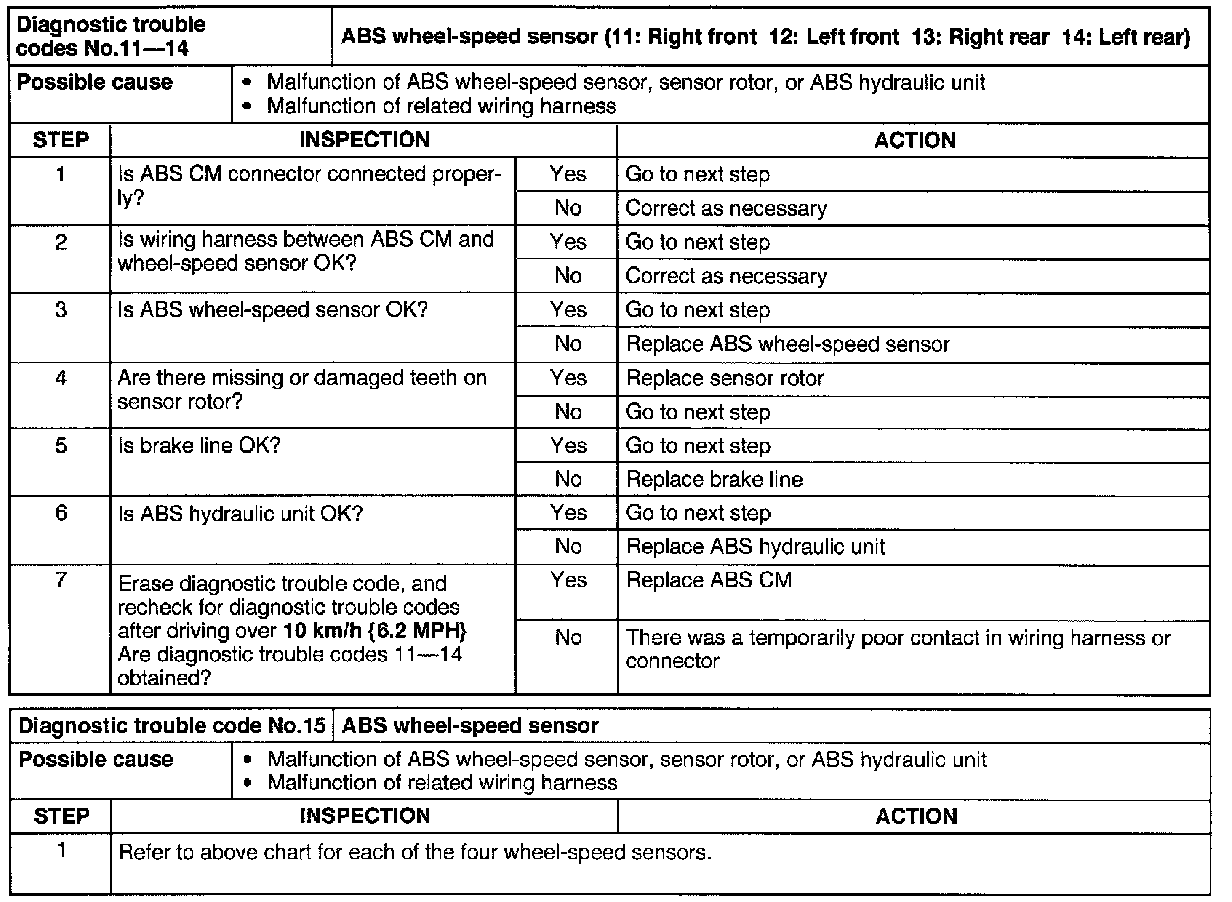

Fig. 26 Codes 11-15: Wheel Speed Sensor:

Fig. 27 Codes 22, 24, 25, 26, 27 & 51: Solenoid Valve & Valve Relay:

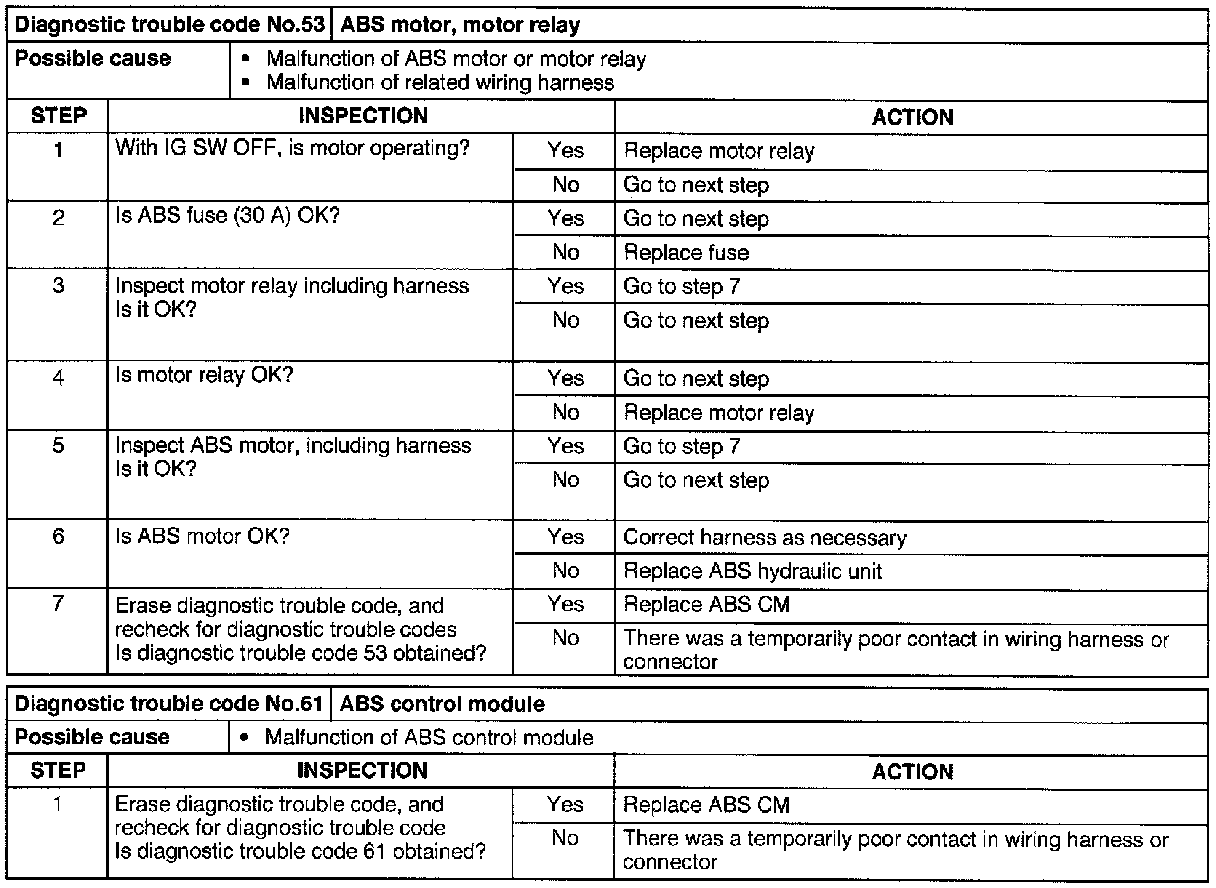

Fig. 28 Codes 53 & 61: ABS Motor, Motor Relay & Control Module:
