Pressure Control Solenoid

Pressure Control Solenoid:

PRESSURE CONTROL SOLENOID

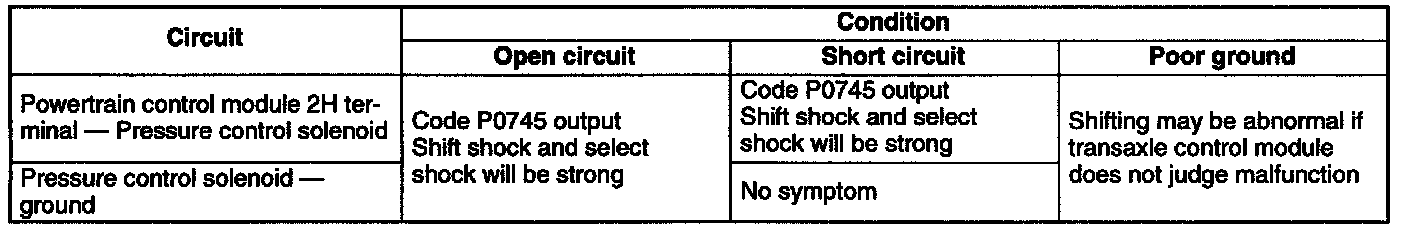

- If there is an open or short circuit in the pressure control solenoid or harness, diagnostic trouble code P0745 is displayed by the on-board diagnostic system and O/D OFF mode is canceled.
- If a malfunction occurs in the pressure control solenoid, line pressure is set at maximum to make driving possible.
- If a malfunction occurs in pressure control solenoid, torque converter clutch operation is concealed.
