Battery Power, Battery Power (Backup) and Ground

Battery Power (Backup):

Battery Power (Backup)

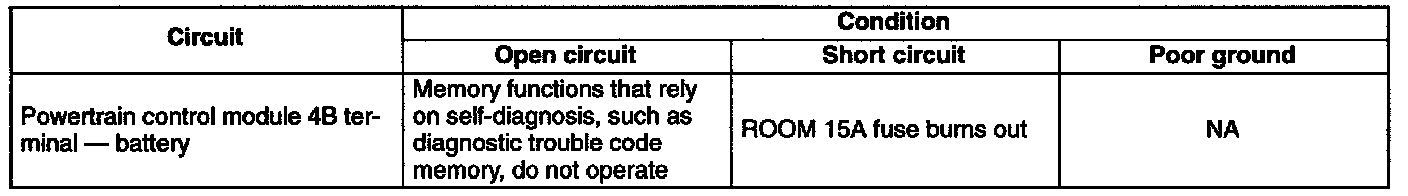

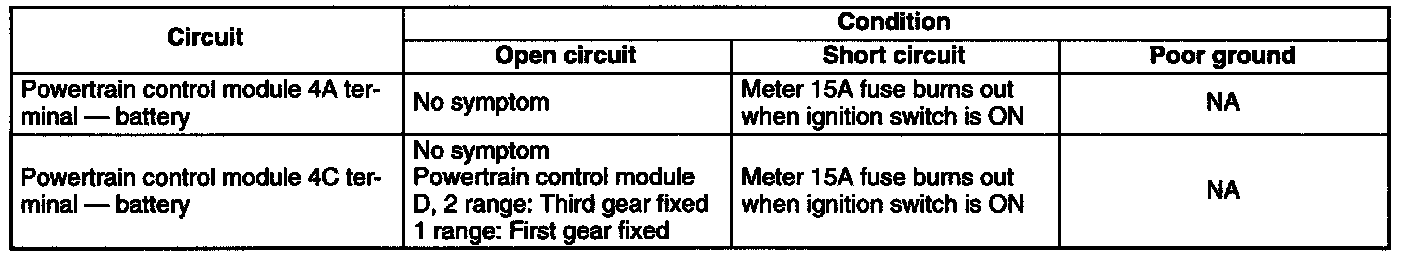

Battery Power:

Battery Power

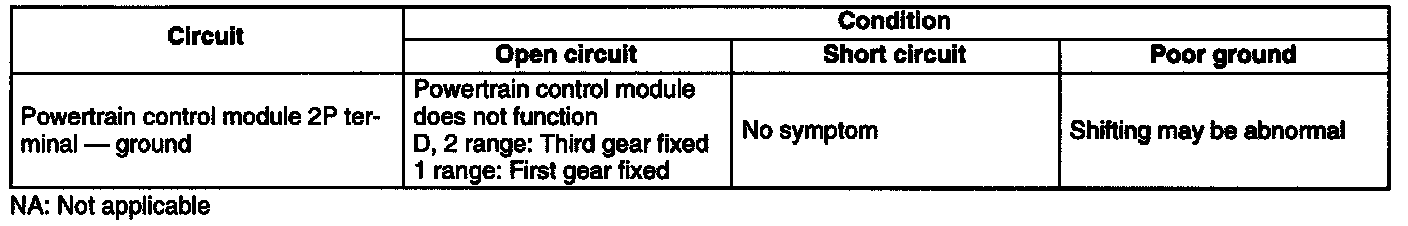

Ground:

Ground
