Using the EC-AT Tester (49 G019 901) Adapter Unit (49 H019 902)

INSPECTION PROCEDURE

CAUTION: Do not connect the NGS to the data link connector 2 when EC-AT tester is connected to the powertrain control module. Doing so can cause incorrect test results.

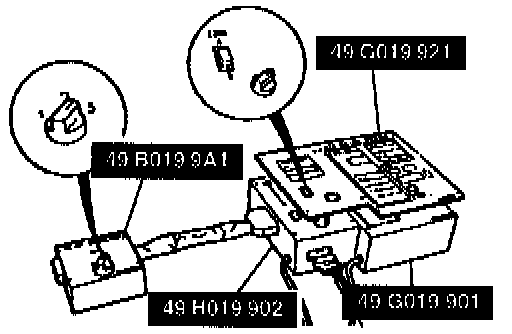

EC-AT tester (49 GO19 901), adapter (49 HO19 902) and adapter (49 BO19 9A1):

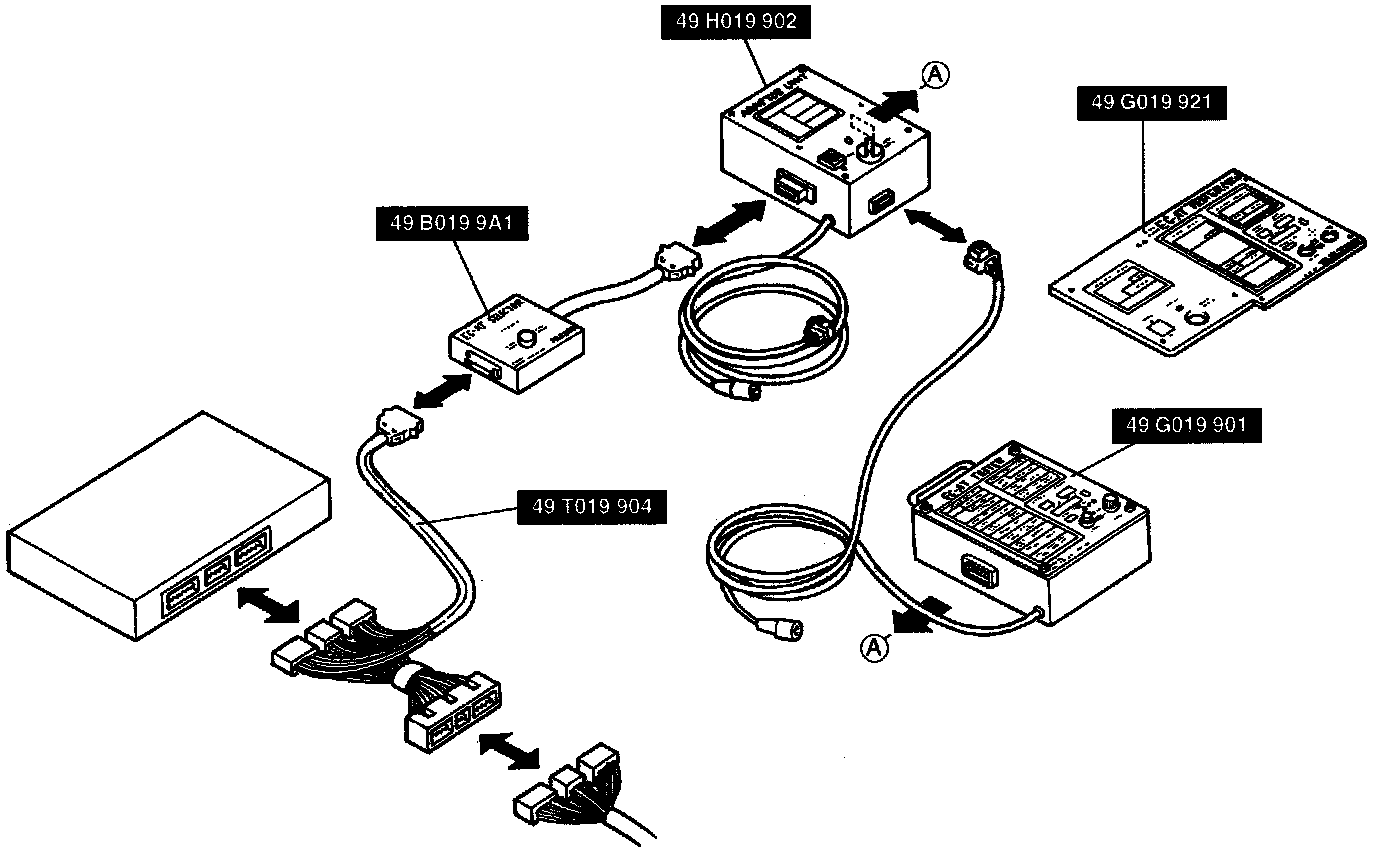

1. Assemble the SST.

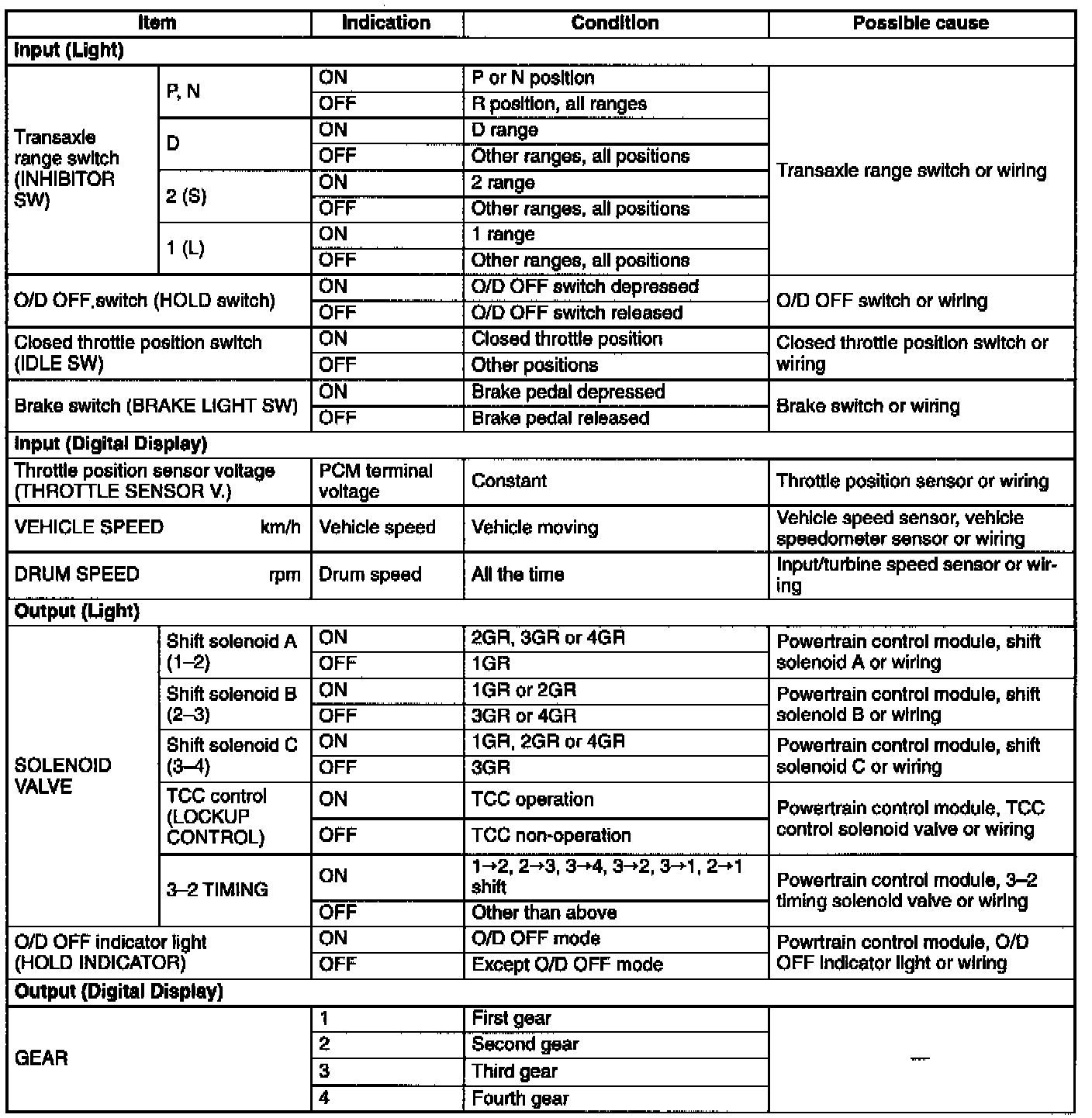

2. Set the EC-AT selector switch to position 3.
3. Set the adapter unit vehicle switch to 626/MX-6 position.




4. Set the adapter unit select switch to position A.




5. Turn the ignition switch and the EC-AT tester main switch to ON.




6. Check indication of the respective light or digital display in each condition, referring to the indication table.
