M/T - Shift Control Mechanism Update

Bulletin No.: 002/97
Issued: 10/10/97
Revised:

Category
J

Applicable Model/s
1996 626 / MX-6

Subject:
SHIFT CONTROL MECHANISM PARTS ON G25-R TYPE MANUAL TRANSAXLE

APPLICABLE MODELS
1996 626 / MX-6 with manual transaxle

DESCRIPTION

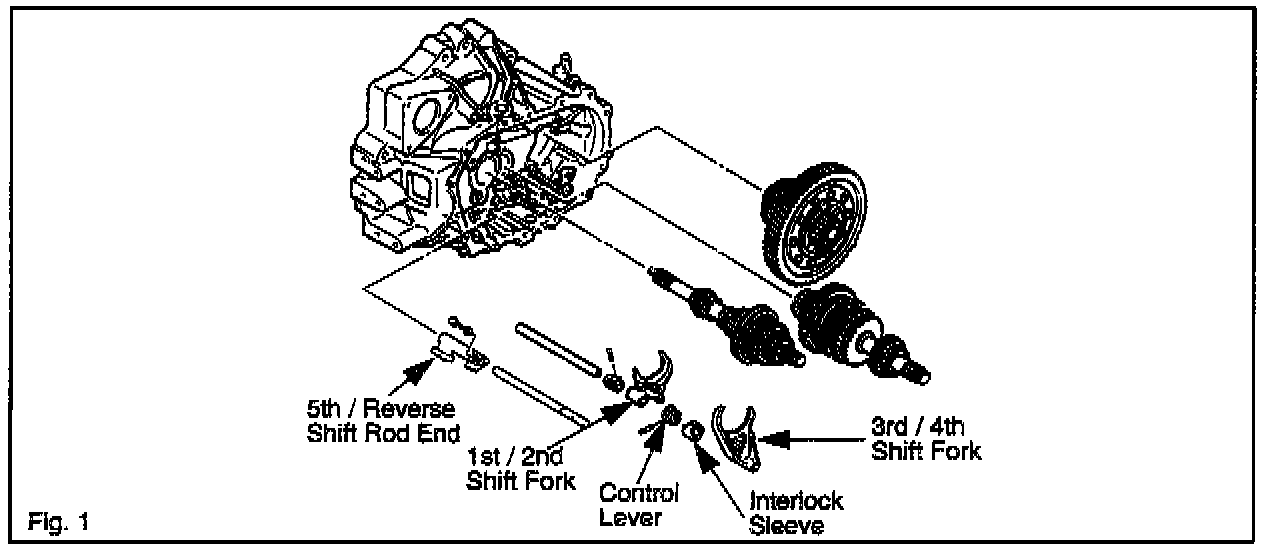

To improve the productivity, 1st / 2nd shift fork, 3rd / 4th shift fork, control lever, interlock sleeve and 5th / reverse shift rod end on G25M-R type manual transaxle have been standardized. When any of these parts is replaced with a modified one, also replace the other parts with modified ones. Refer to Fig. 1

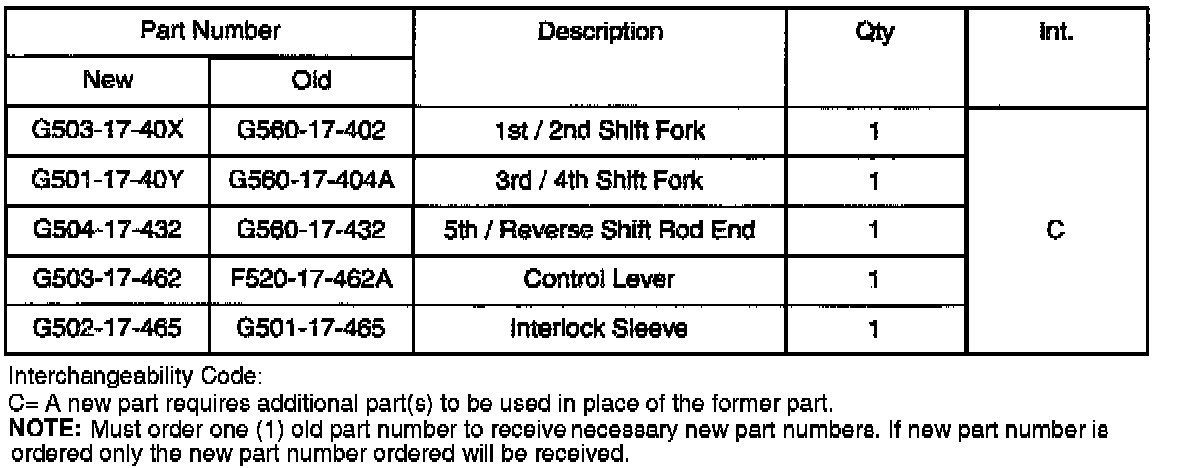

PARTS INFORMATION
