Variable Induction Control Solenoid: Testing and Inspection

VRIS SOLENOID VALVE:

VRIS SOLENOID VALVE (No.1, No.2) INSPECTION
1. Disconnect the solenoid valve.
2. Verify that air flow between each port as shown below.

Solenoid Valve (Activated):

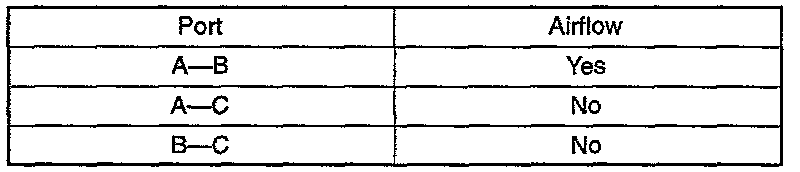

Solenoid Valve Air Flow (Activated):

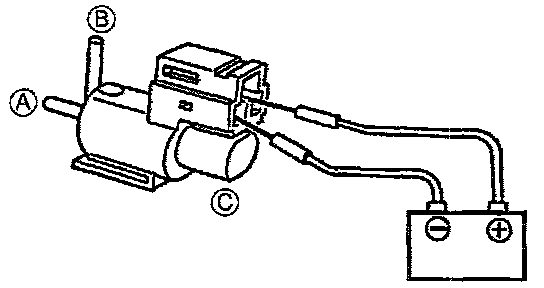

3. Apply gallery positive voltage and a ground to the terminals of the solenoid valve.

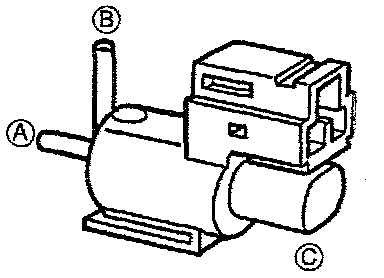

Solenoid Valve Air Flow (Inactive):

4. Verify that air flow between each port as shown.
