Installation

Cable Adjustment:

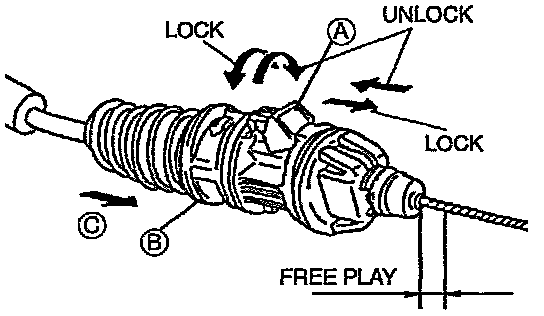

ACCELERATOR CABLE INSTALLATION / ADJUSTMENT
1. Verify that the throttle valve is closed throttle position.
2. Measure the free play of the accelerator cable.

Free play: 1.5-4.5 mm (0.06-0.17 in.)

3. If not as specified, turn stopper B while pressing lock button A to release the lock.
4. Push the spring in direction C and adjust the cable free play.
5. Lock stopper A after locking stopper B.
