Automatic Transaxle

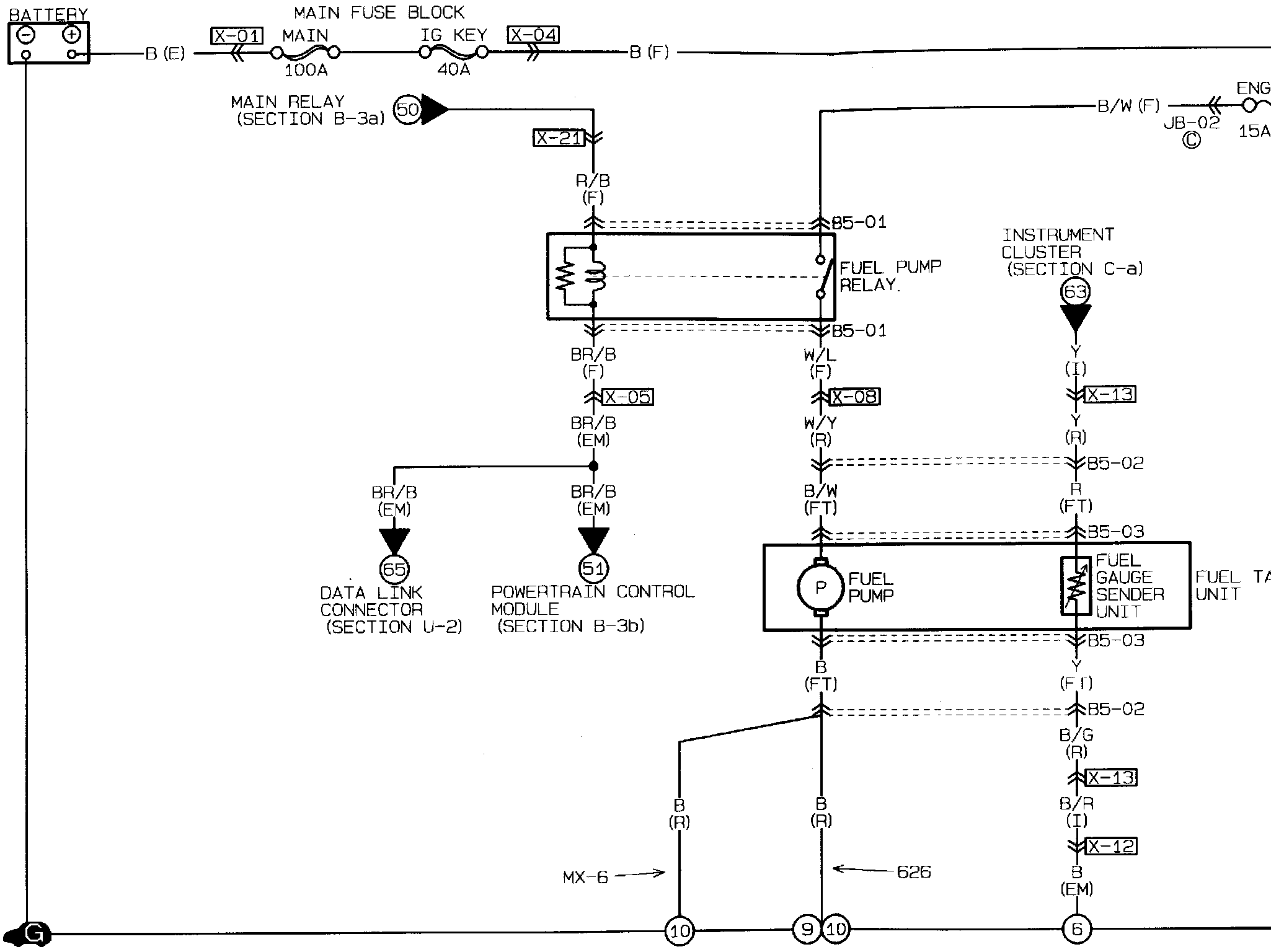

�1�EFuel Control System:
B5-01 Fuel Pump Relay (F):

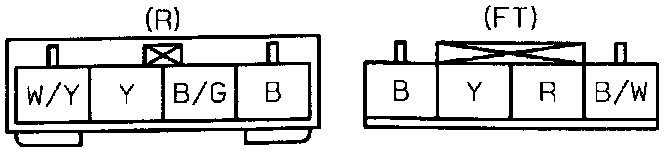

B5-02 Rear (R)- Fuel Unit (FT):
B5-03 Fuel Tank Unit (FT):

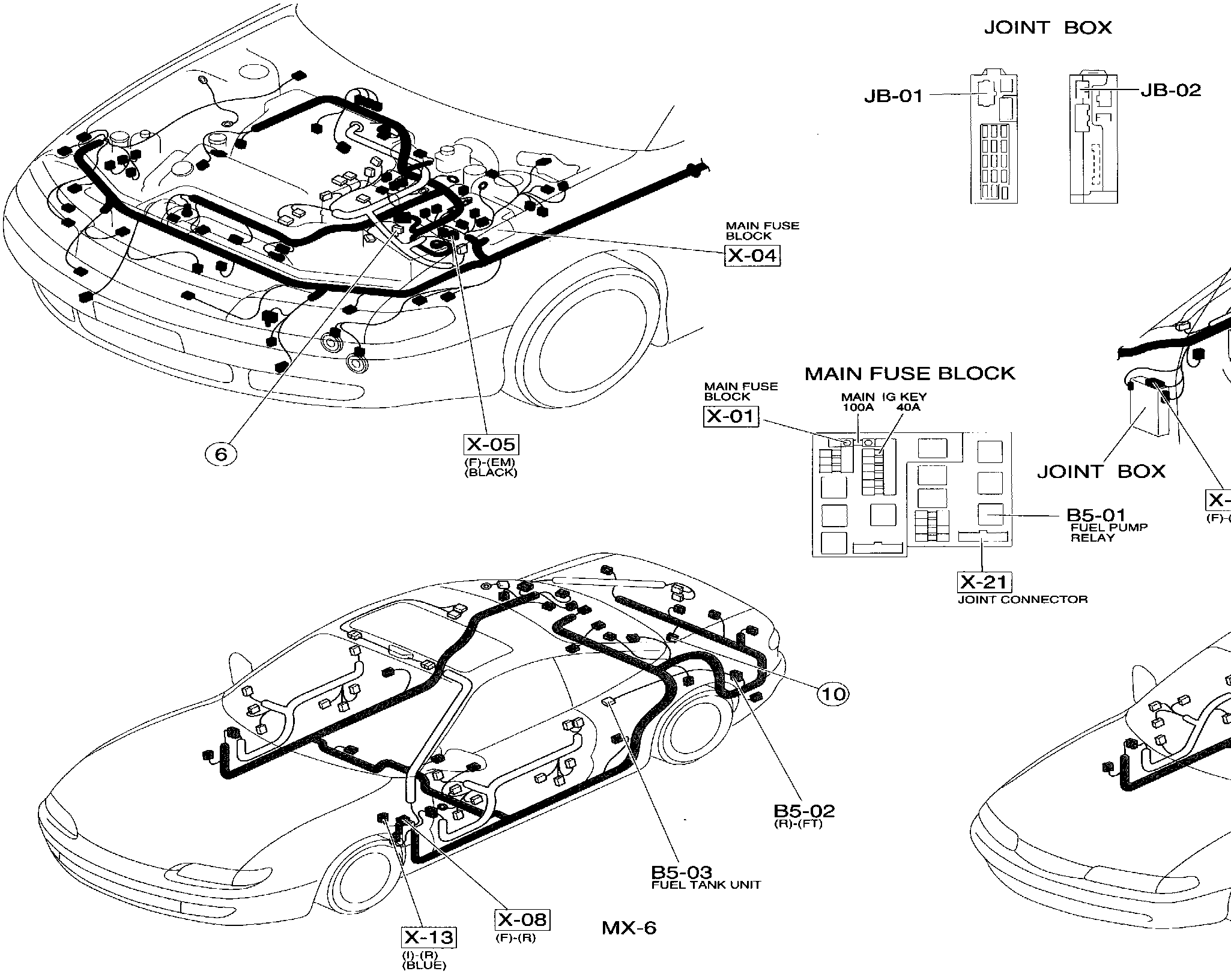

��JCConnector Locations:
