Cooling System: Description and Operation

ELECTRICAL FAN CONTROL SYSTEM:

ELECTRICAL FAN CONTROL SYSTEM DESCRIPTION

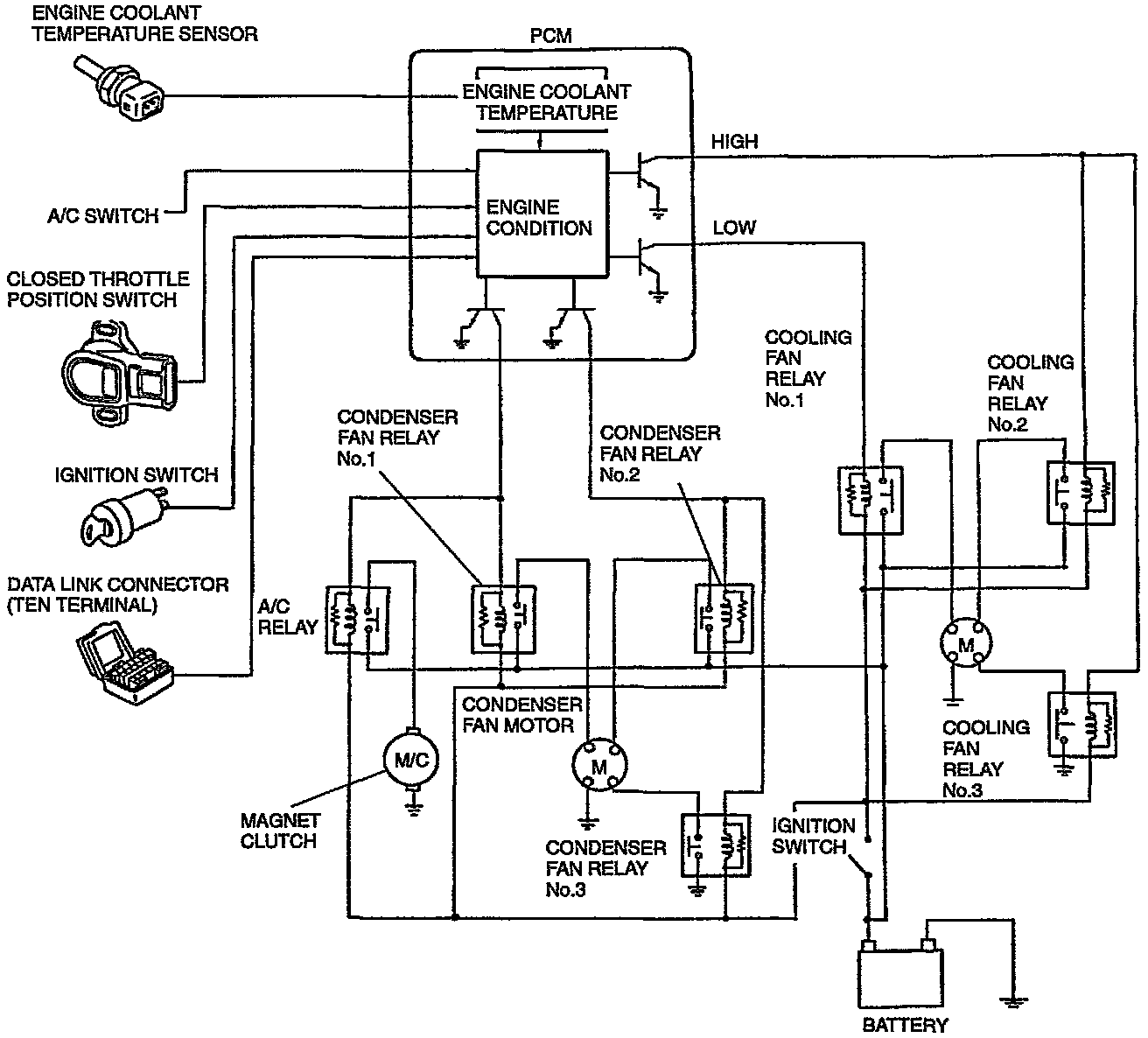

To improve idle smoothness and engine reliability, the Powertrain Control Module (PCM) and the electrical fan control system control the electric fan operation. This system consists of the cooling fan, condenser fan, fan relays, PCM, and input devices.
