Home
>>
Mazda
>>
1996
>>
626 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Valve Body, A/T
>>

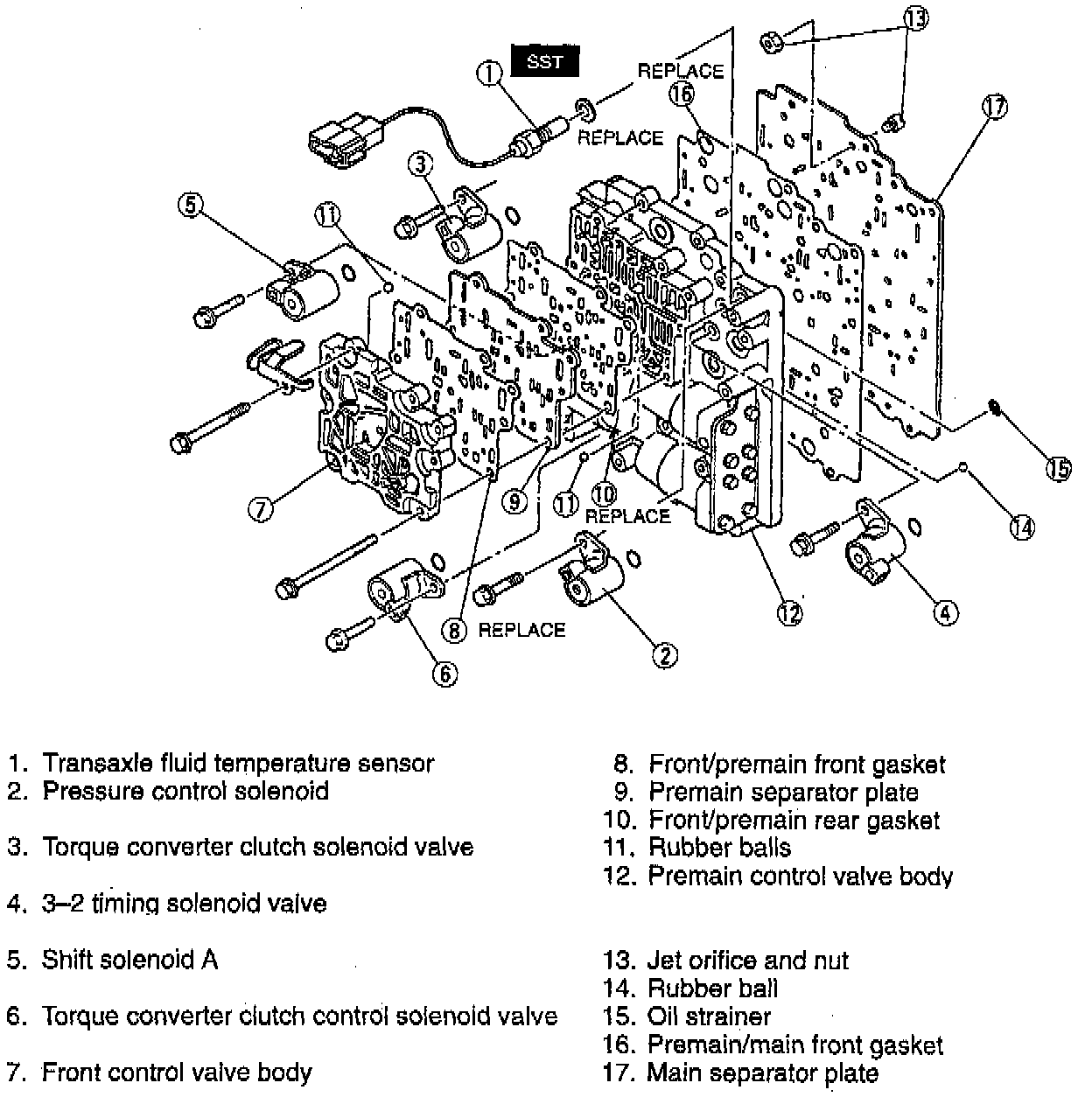

Control Valve Body
Control Valve Body
Part 1 Of 2:
