Wiring Diagram

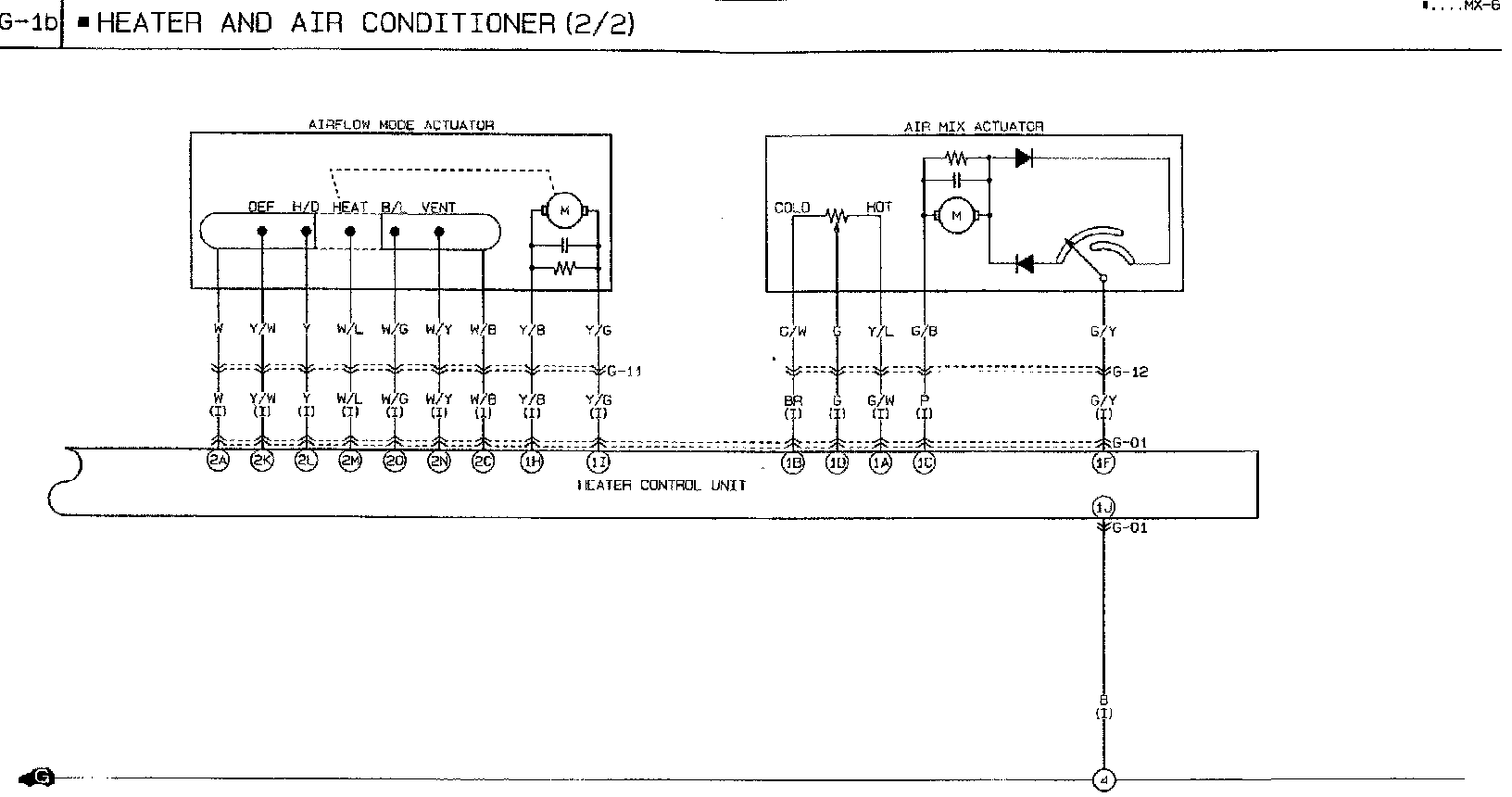

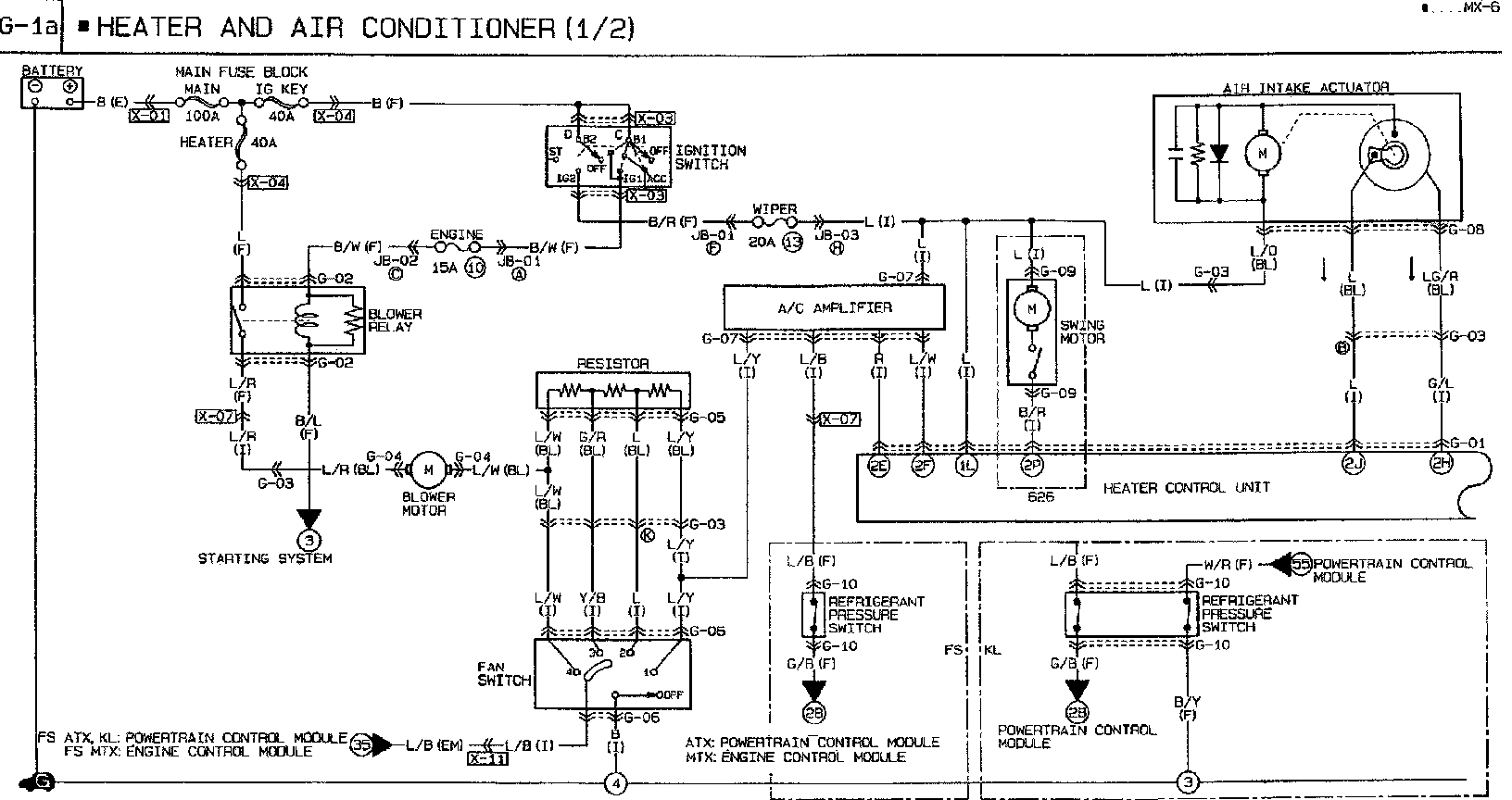

Heater And Air Conditioning (1 Of 2):






Heater And Air Conditioning (1 Of 2):






Condenser Fan Circuit:





Connector Locations:
