Home
>>
Mazda
>>
1996
>>
626 V6-2496cc 2.5L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
>>
Condenser Fan
Condenser Fan

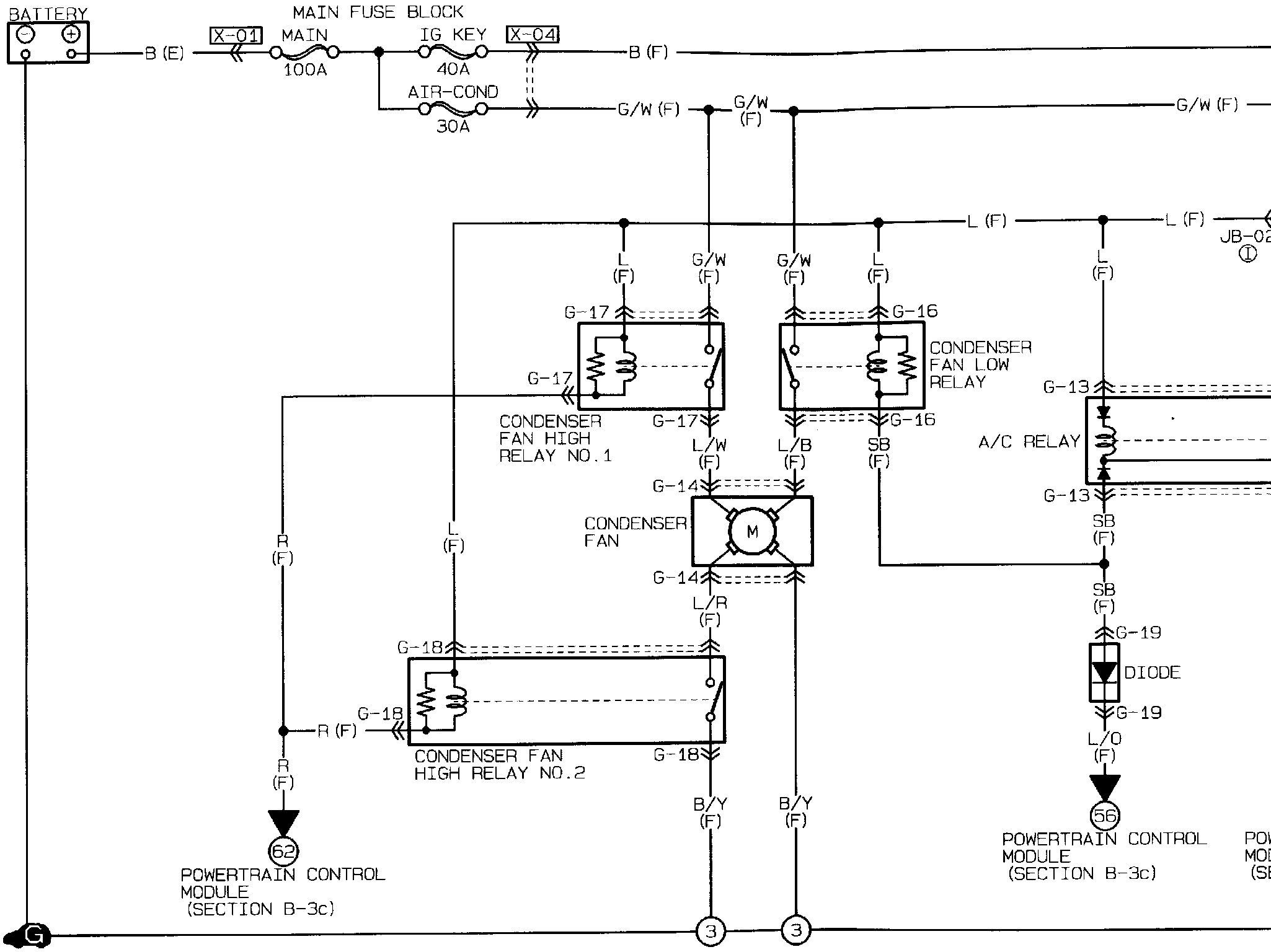

�fbCondenser Fan System:
