Automatic Transaxle

TRIPOD TYPE (ATX)

Overhaul

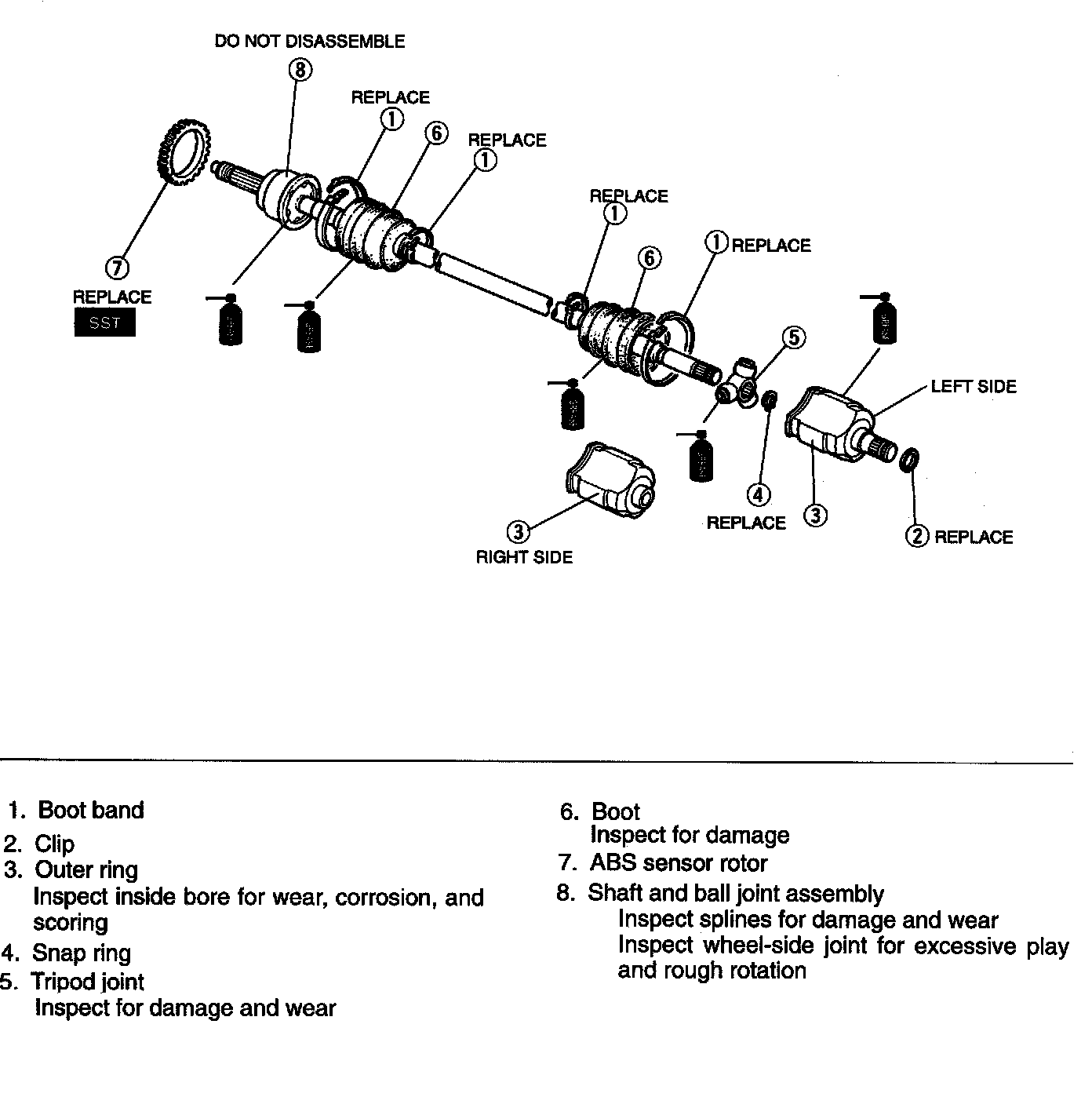

1. Disassemble in the order shown in the figure, referring to Disassembly Note.

Disassembly Note

Boot Band

Note: The boot band does not need to be removed unless you are replacing it.

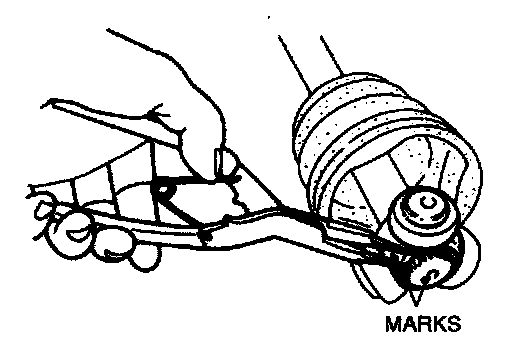

Remove the boot clamp with end clamp pliers as shown and discard the clamp.

Outer Ring





Mark the outer ring and the shaft for proper reassembty.

Snap Ring/tripod Joint

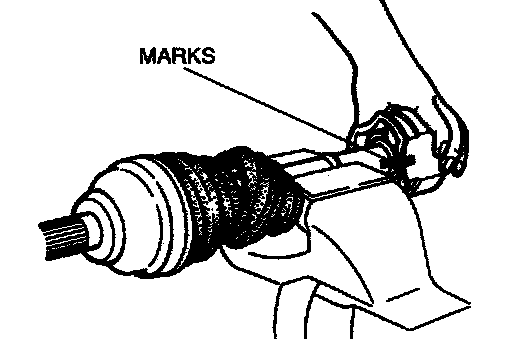

1. Mark the shaft and tripod joint for proper reassembly.

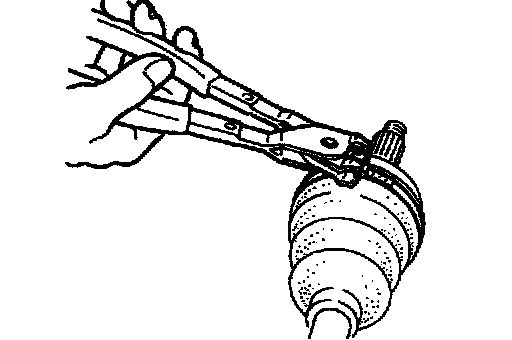

2. Remove the snap ring with snap ring pliers.
3. Remove the tripod joint from the shaft with a bar and a hammer.

Note: The wheel-side boot does not need to be removed unless you are replacing it.

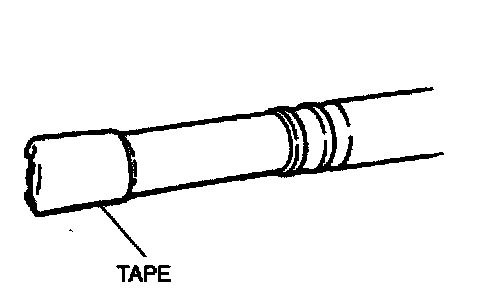

Wrap the splines of the shaft with tape to prevent damaging the boot.

ABS Sensor Rotor

Note: The sensor rotor does not need to be removed unless you are replacing it.

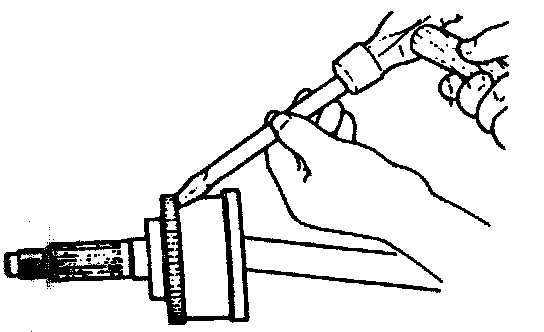

Tap the ABS sensor rotor off the drive shaft by using a chisel.

2. Inspect all parts and repair or replace as necessary.
3. Verify that all parts are free of dust, dirt, and other foreign material immediately before reassembly.
