Automatic Transaxle
ASSEMBLYAssembly Note
ABS Sensor Rotor
Caution: Verify the direction of the sensor rotor.

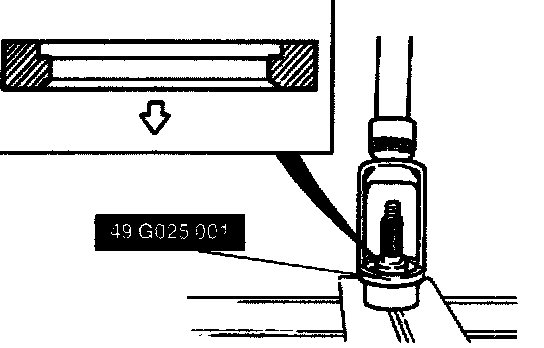

Set a new ABS sensor rotor on the drive shaft in the direction shown, and press it onto the shaft assembly by using the SST.
Boot

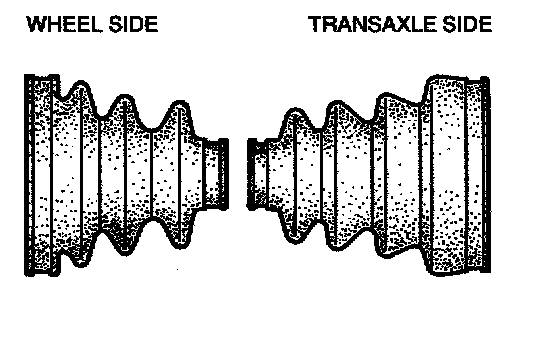

1. Wrap the splines of the transaxle side shaft, and install the wheel-side and transaxle side boots, noting the shape and size of each one in the figure.

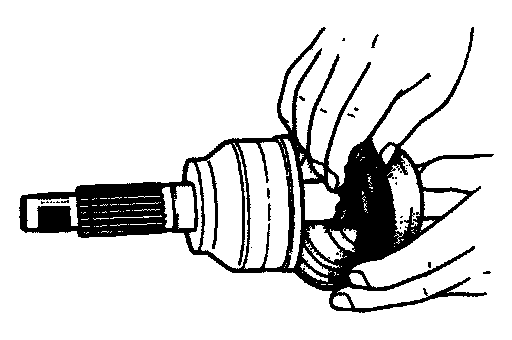

2. Fill the wheel side boot with the grease supplied in the boot kit.
Grease amount: 12-145 g (4.41-5.11 oz)
Snap Ring/Tripod Joint

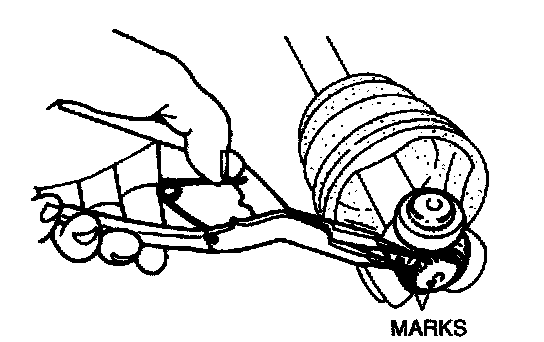

1. Align the marks and install the tripod joint.
2. Install the new snap ring with snap-ring pliers.
Outer Ring

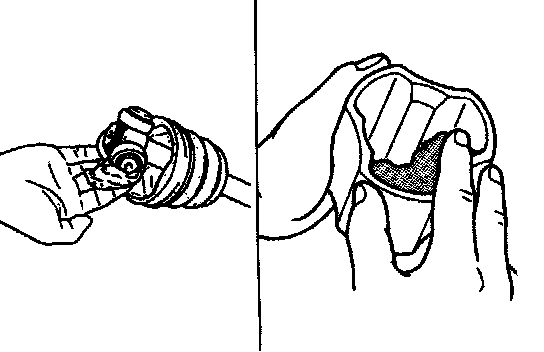

Fill the outer ring and transaxle-side boot with the grease supplied in the boot kit.
Grease amount: 18-215 g (6.52-7.58)
Boot Band
1. Verify that the boots are not dented or twisted.

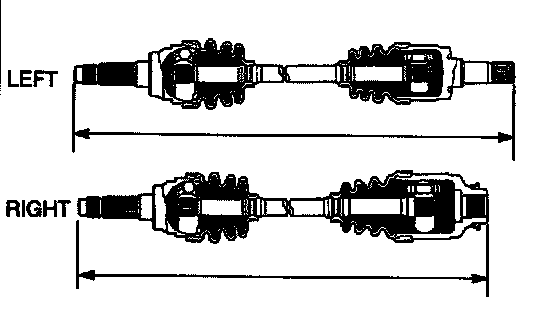

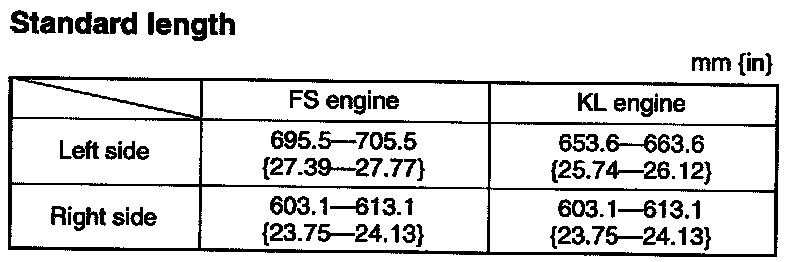

2. Set the drive shaft to the standard length.

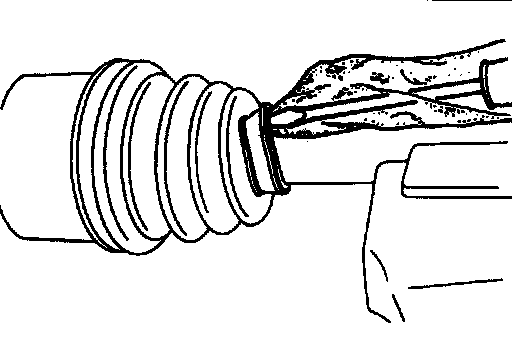

3. Release any trapped air from inside the boot by using a rag-covered screwdriver.
4. Verify that the drive shaft length is within the standard.
5. If the drive shaft length is not within the standard, return to step 1.

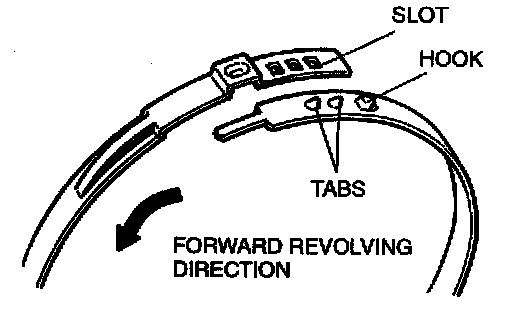

6. Install a new boot band on the boot so that the end of the boot band with slots is pointing opposite the forward revolving direction of the drive shaft.
7. Slide the hook into the end slot, and fit the tabs into the remaining two slots.

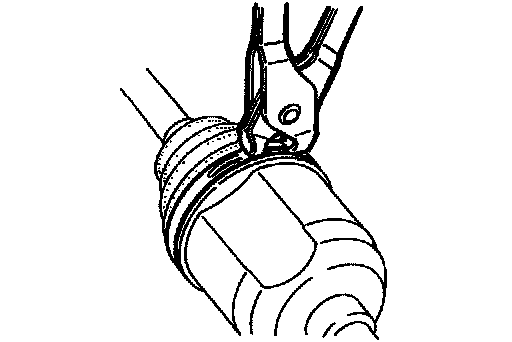

8. Crimp the clamp securely by using clamp pliers.
Caution: Do not overcrimp the boot band clamp. Over-crimping could damage the clamp bridge.
