Home
>>
Mazda
>>
1996
>>
626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Shift Interlock
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

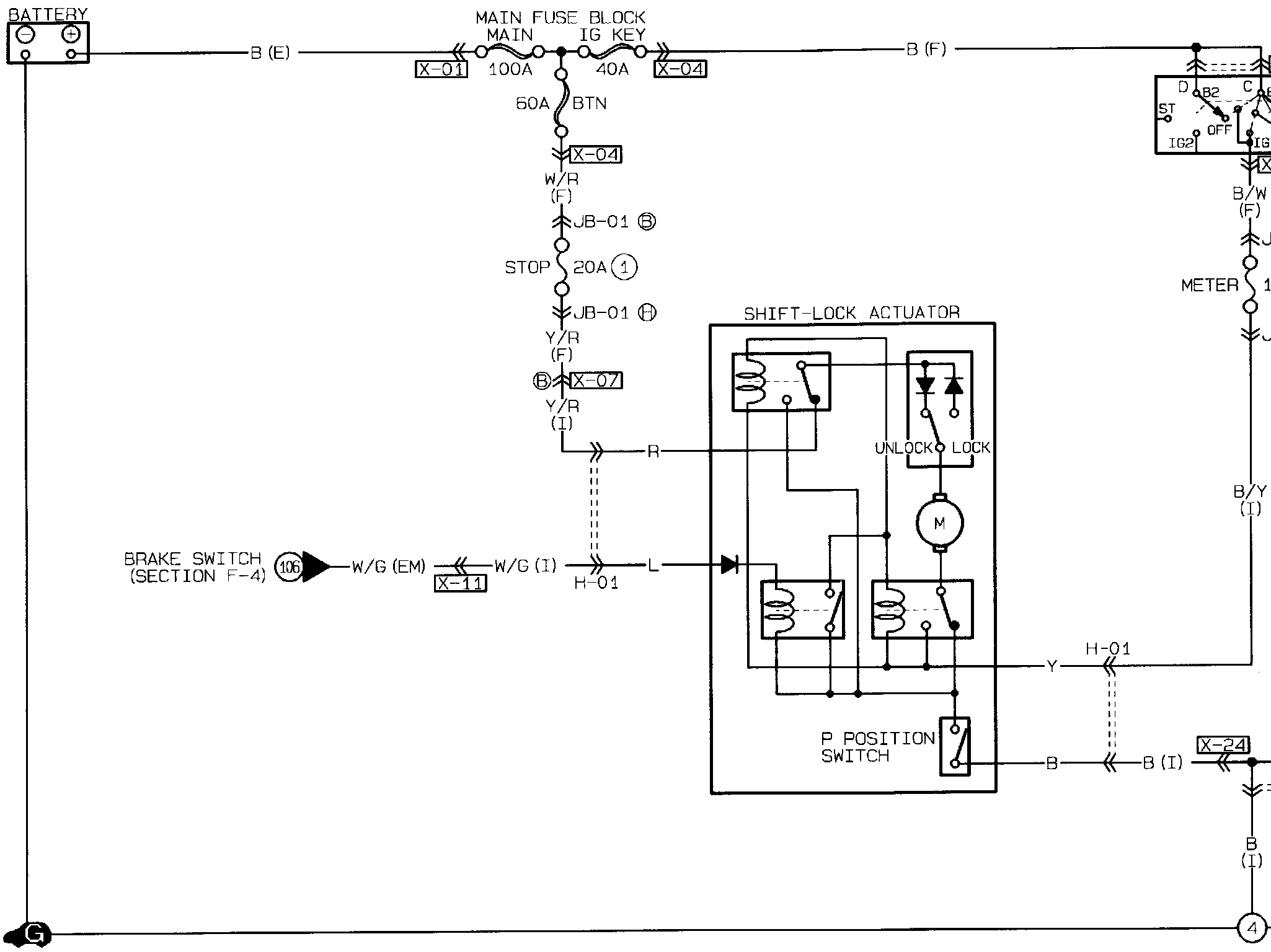

9�:HShift-Lock System:
