Diagnostic Procedures

Air Bag System Warning Light Remains On

Possible cause
- Damaged SAS-unit
- Open or short circuit in wiring harness
- Poor connection of connector

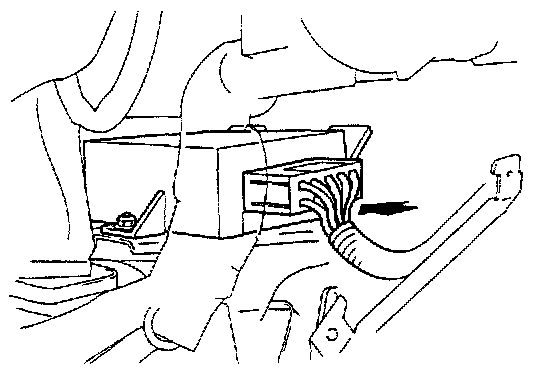

SAS-Unit Location:

Remedy

Warning:
Handling the SAS-unit improperly can accidently deploy the air bags, which may seriously injure you. Read SERVICE WARNINGS before handling the SAS-unit.

1. Verify that the ignition switch is at LOCK.

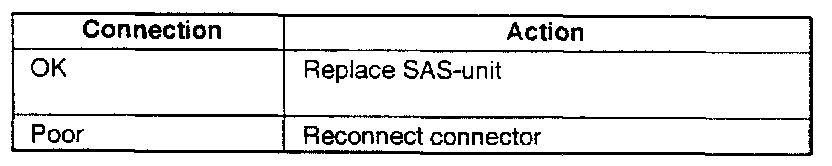

Corrective Action Table:

2. Check the SAS-unit connection.
