With Manual Transaxle

INSPECTION
Primary Coil Winding
1. Disconnect the 3-pin connector from the distributor

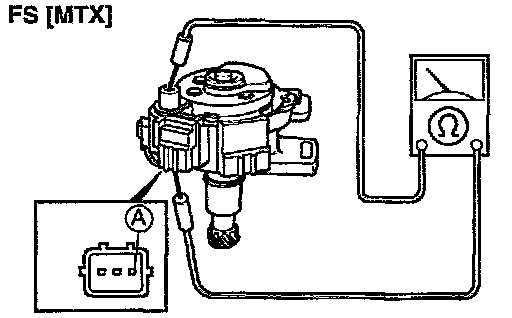

Distributor Testing FS (MTX) And KL:

2. Use an ohmmeter to measure resistance of the primary coil winding.

Specification: 0.49-0.73 Ohms @ 20°C (68°F).

3. If not within the specification, replace the distributor.

Secondary Coil Winding
1. Disconnect the 3-pin connector from the distributor.
2. Remove the distributor cap.

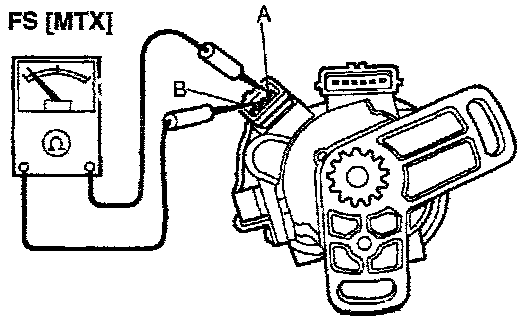

Distributor Testing FS (MTX):

3. Use an ohmmeter to measure resistance of the secondary coil winding.

Specification:20-31 kOhms @ 20°C (68°F)

4. If not within the specification, replace the distributor.
