Throttle Cable/Linkage: Testing and Inspection

ACCELERATOR CABLE INSPECTION / ADJUSTMENT
1. Verify that the throttle valve is in the closed throttle position.
2. Measure the free play of the accelerator cable.

Free play: 1.5-4.0 mm (O.06-O.16 in.)

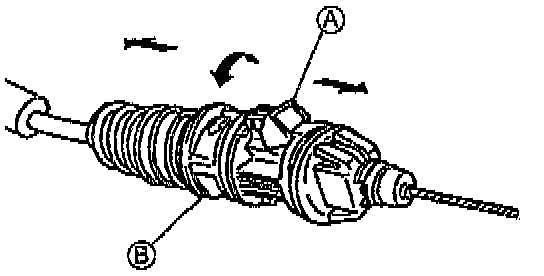

3. If not as specified, adjust the cable free play by turning stopper (B) while pressing lock button (B) with the closed throttle position.
4. Reset the cable lock.
