Throttle Cable/Linkage: Service and Repair

ACCELERATOR PEDAL REMOVAL / INSTALLATION

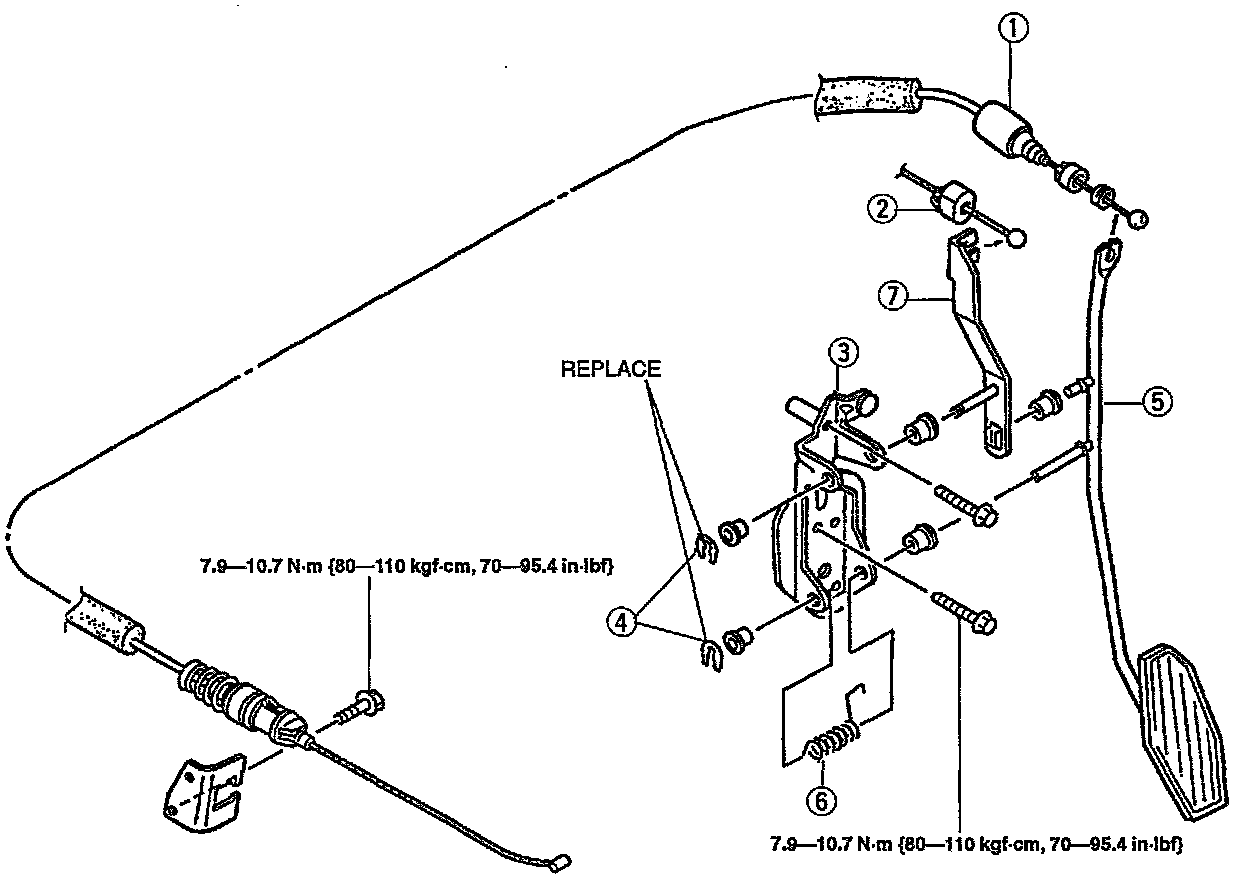

1. Remove in the order shown in the figure.
2. Install in the reverse order of removal.




1. Accelerator cable
2. Cruise actuator cable
3. Retainer
4. Clip
5. Accelerator pedal
6. Return spring
7. Bracket
