Rollover Valve: Testing and Inspection

Fuel Vapor Valve:

Inspection

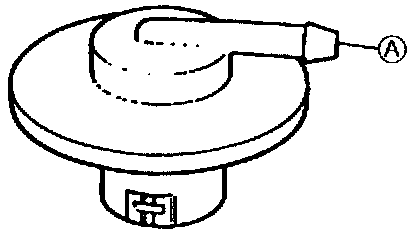

1. Verify that air flows through the valve from port A when the valve is held as shown in the figure.

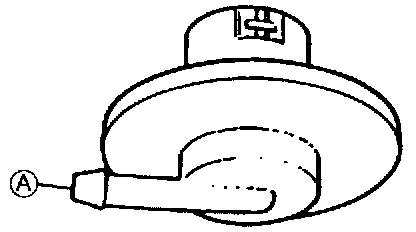

Fuel Vapor Valve Inverted:

2. Verity that no air flows through the valve from port A when the valve is held as shown.
3. If not as specified, replace the fuel vapor valve.
