Mazda
>>
1996
>>
626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Fuel Pressure Control Solenoid
>>
Description and Operation
>>
With Automatic Transaxle
With Automatic Transaxle

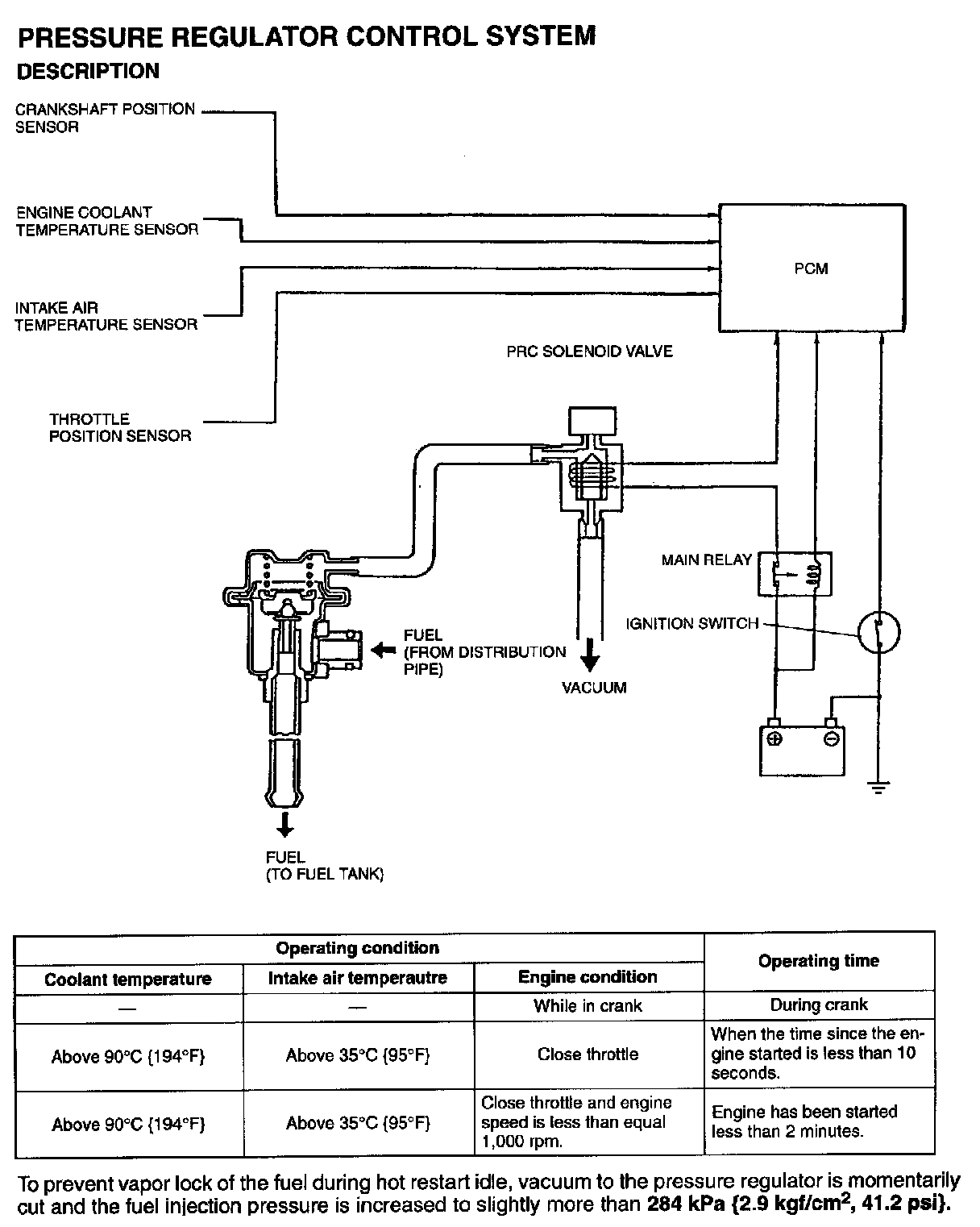

PRESSURE REGULATOR CONTROL (PRC) SOLENOID VALVE
Controls vacuum to pressure regulator.
