With Automatic Transaxle

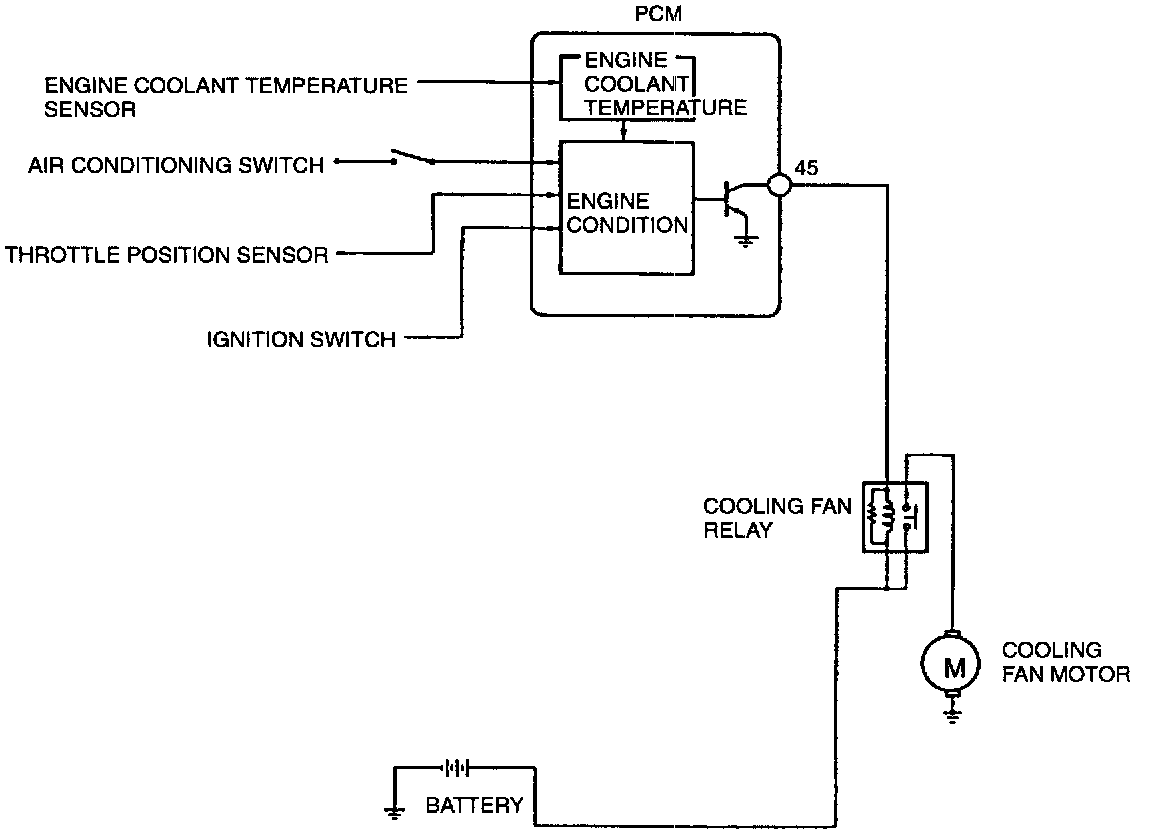

To improve reliability, the cooling fan is controlled by the Powertrain Control Module (PCM). This system consists of the cooling fan motor, fan relays, PCM, and input devices.

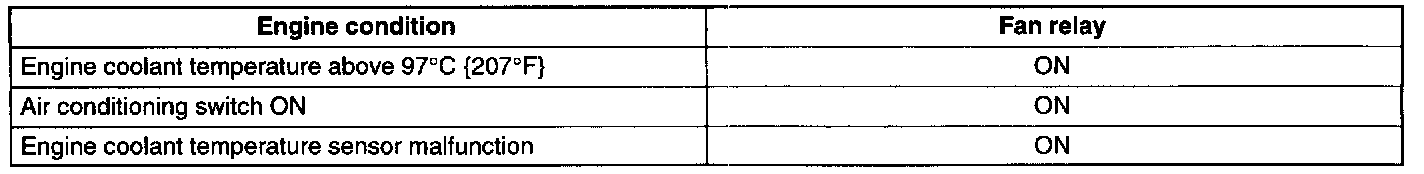

Cooling Fan Operation
