Mazda
>>
1996
>>
626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Computers and Control Systems
>>
Engine Control Module
>>
With A/T
With A/T

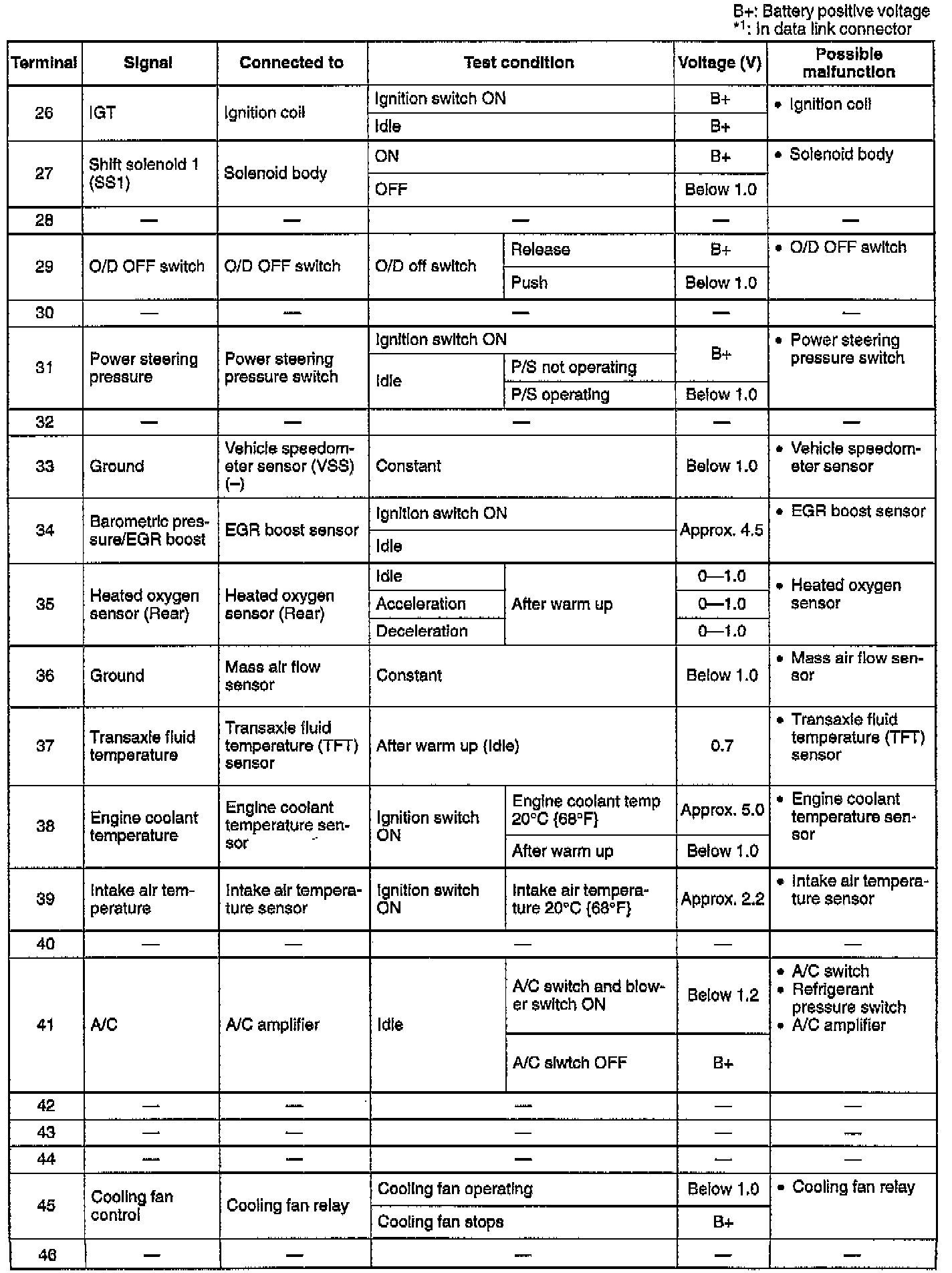

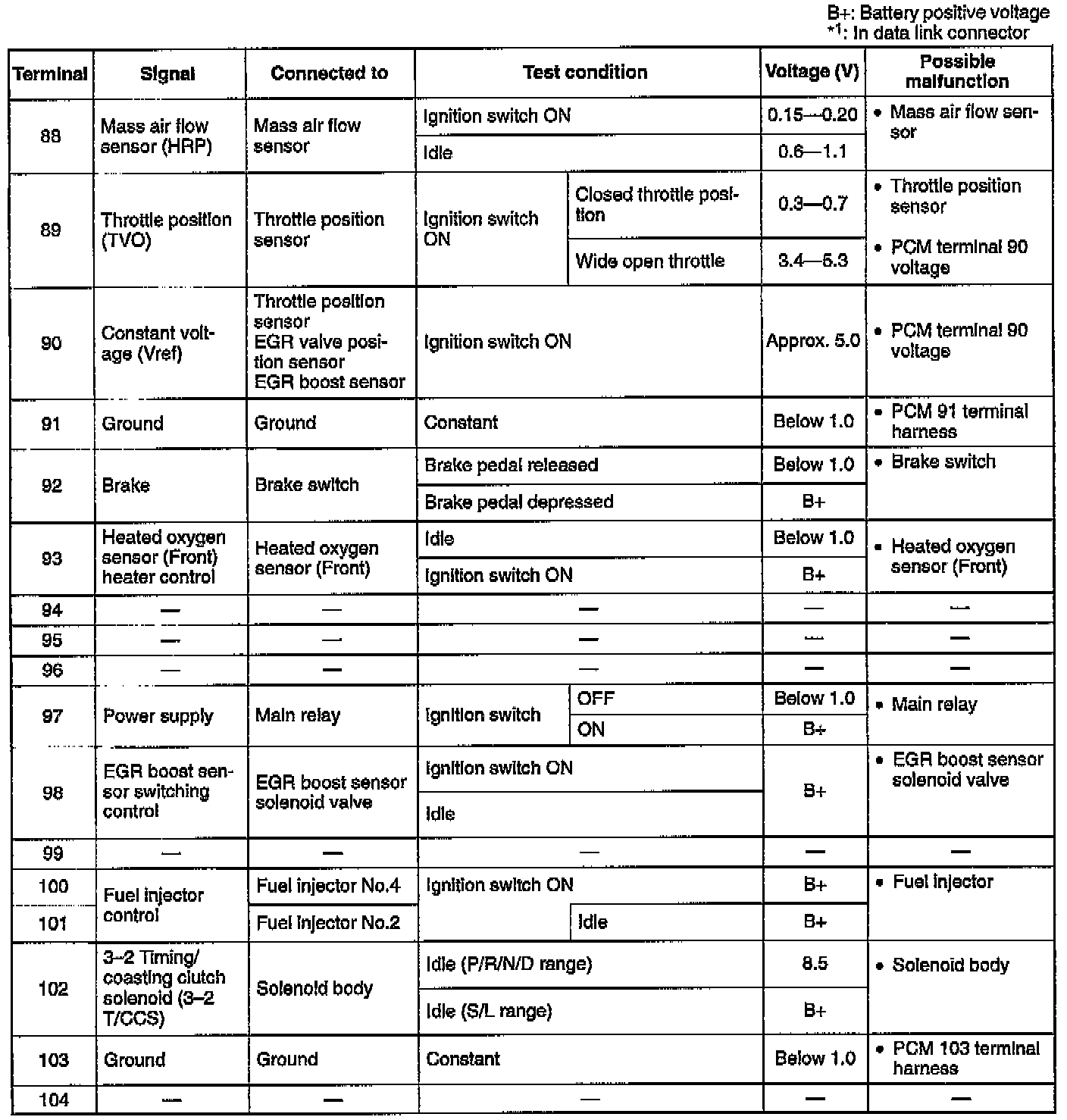

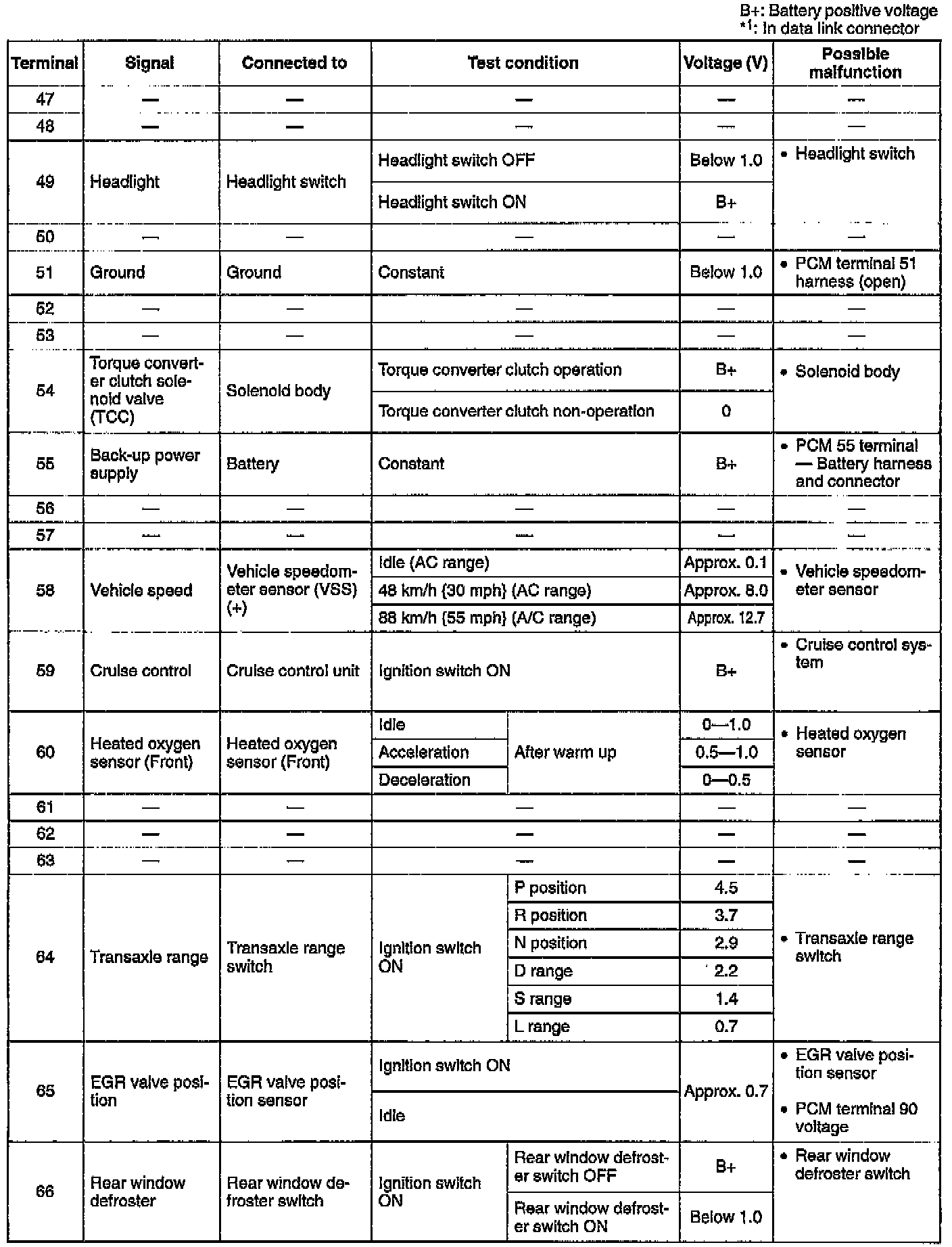

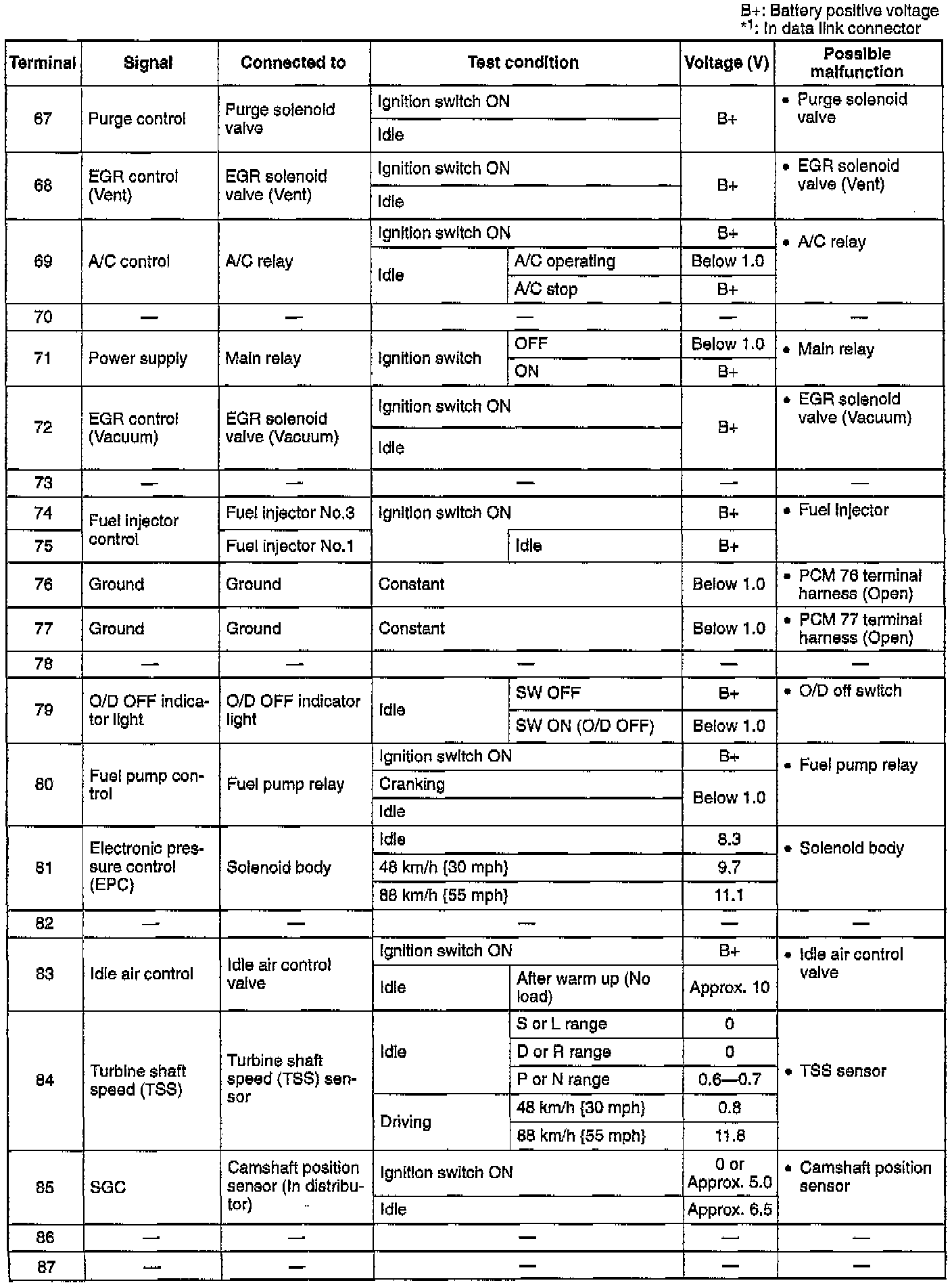

B1-01 Powertrain Control Module (EM):
