626 L4-1991cc 2.0L DOHC
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Antilock Brakes / Traction Control Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

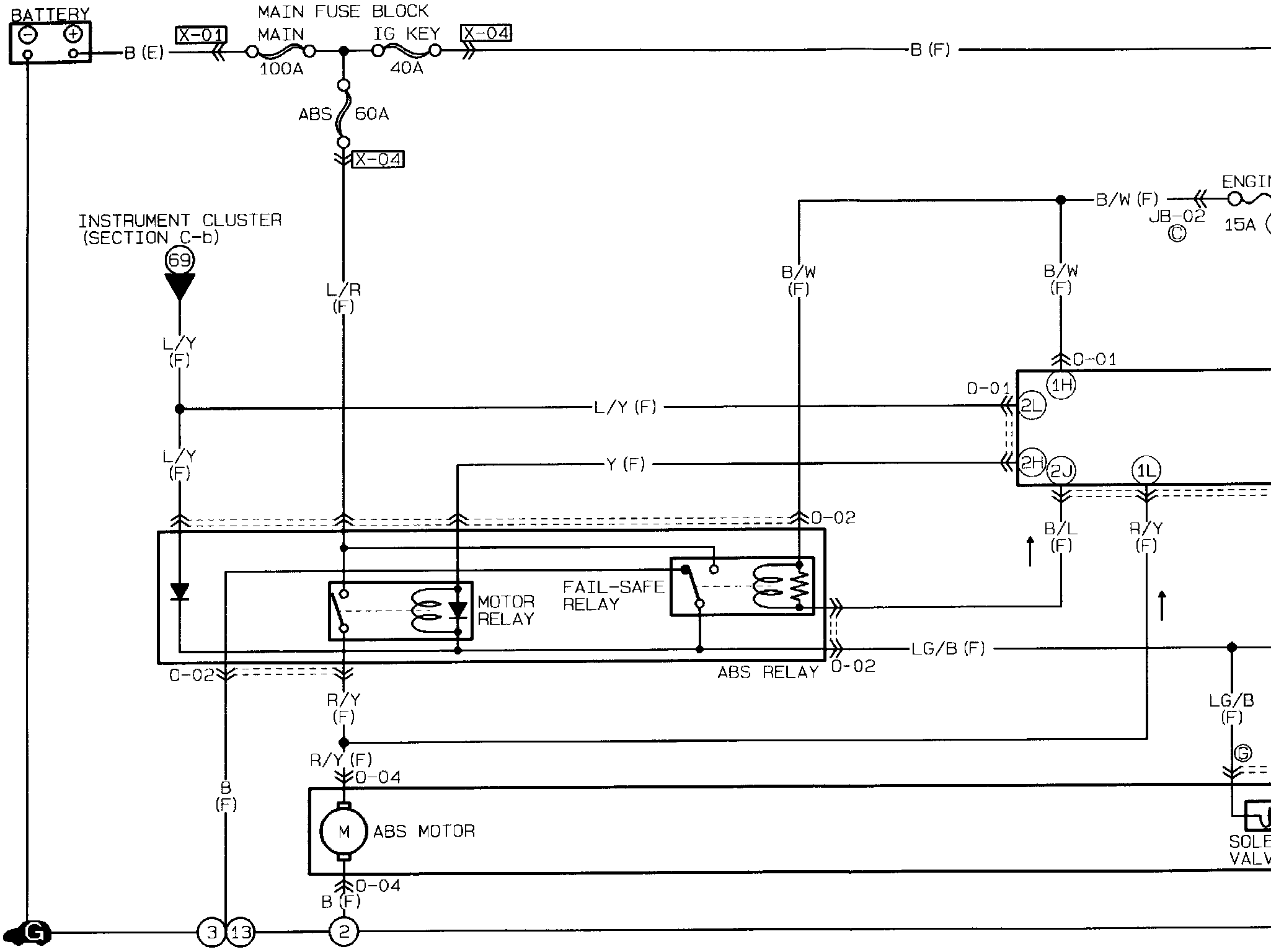

�3[Antilock Brake System (1/2):

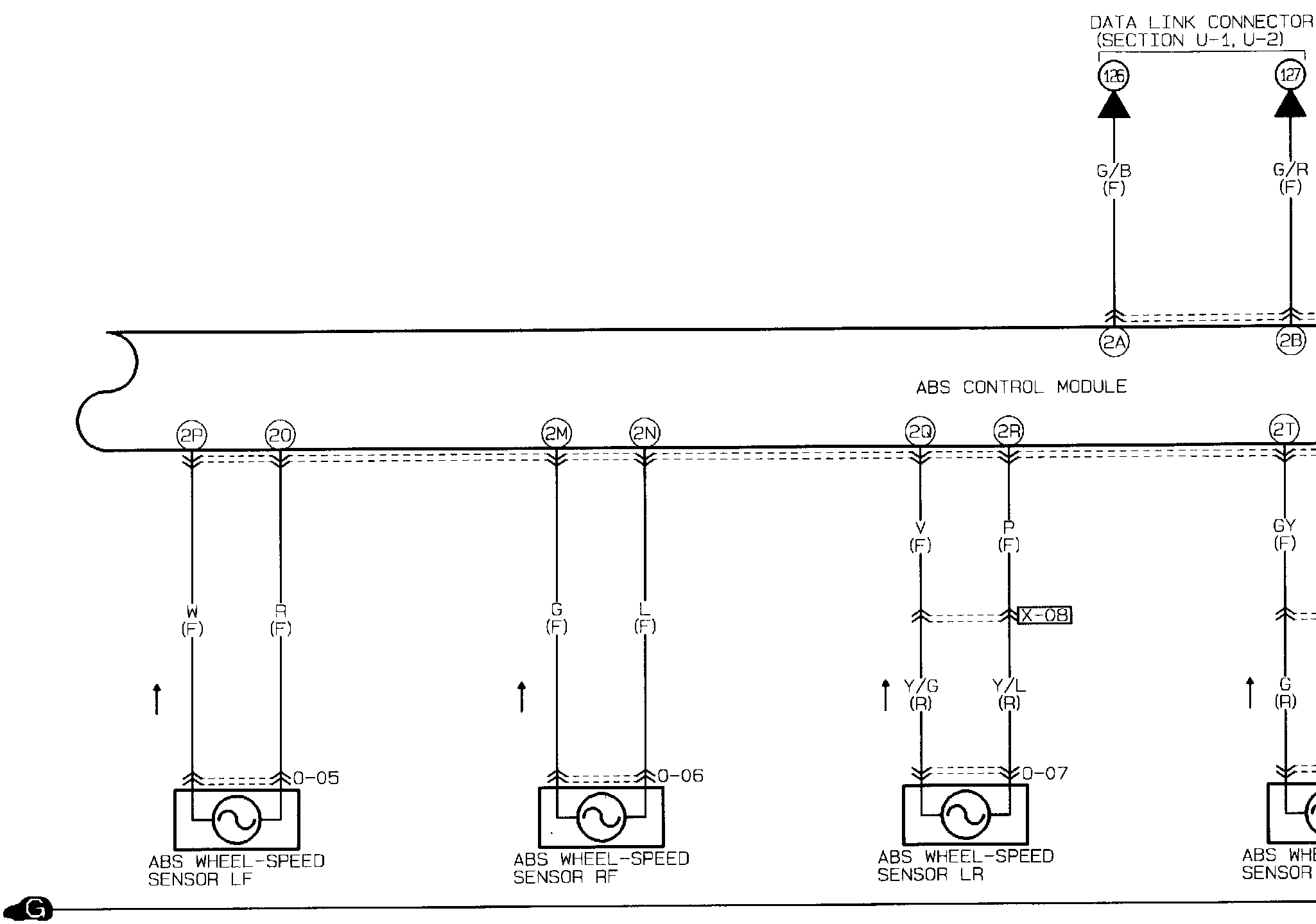

v[Antilock Brake System (2/2):
