Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>

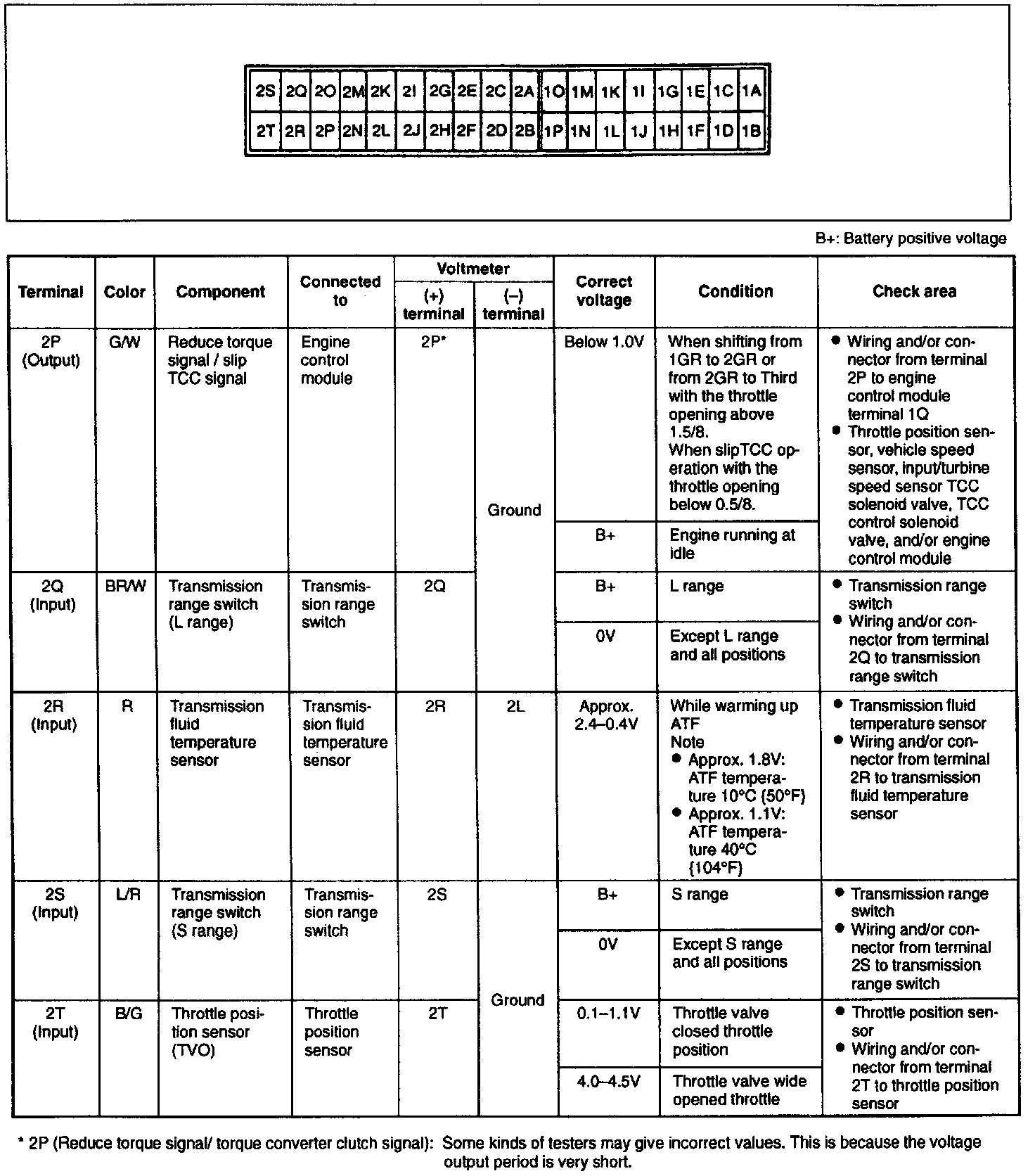

Terminals 2P-2T
Terminals 2P-2T
Terminal Voltage Charts:
