Specifications
>>
Electrical Specifications
>>
Terminals 4W-4Z
Terminals 4W-4Z

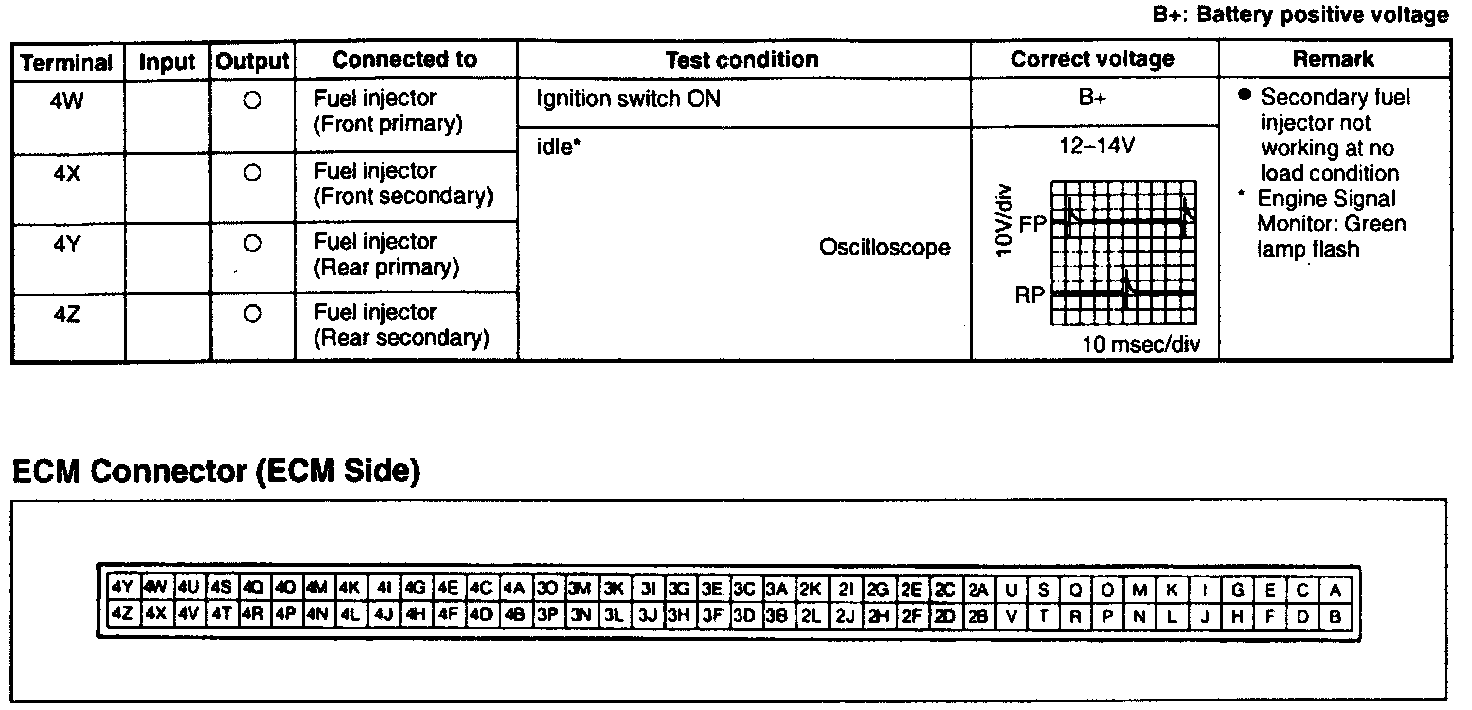

Terminal Voltage Charts:
