Mazda
>>
1994
>>
RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Automatic Transmission/Transaxle
>>
System Specifications
>>
Terminals 2B-2I
Terminals 2B-2I

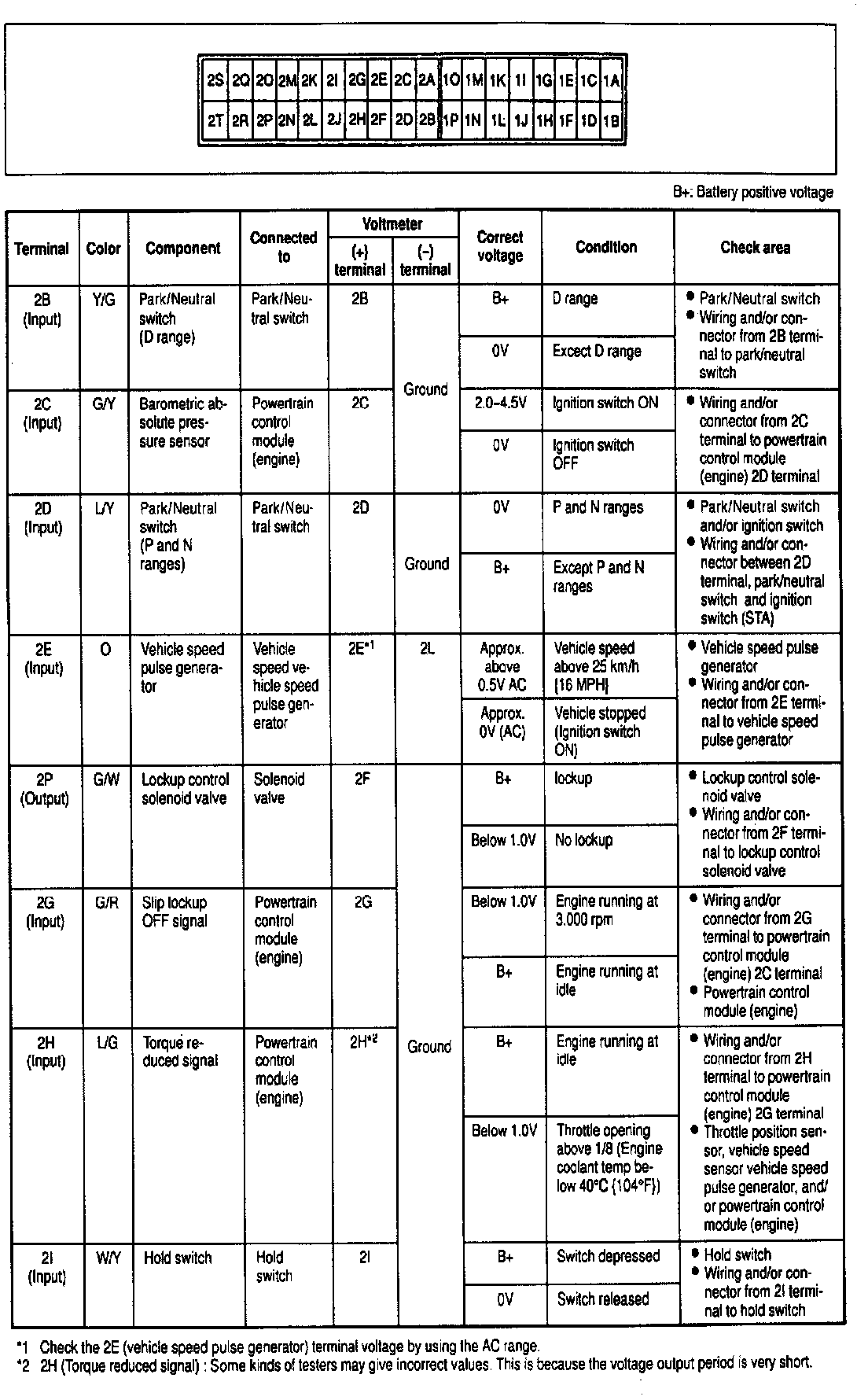

Terminal Voltage Charts:
