Throttle Cable/Linkage: Service and Repair

Accelerator Pedal And Cable:

1. Remove in order shown.
2. Inspect components and replace as needed.
3. Install in reverse order.

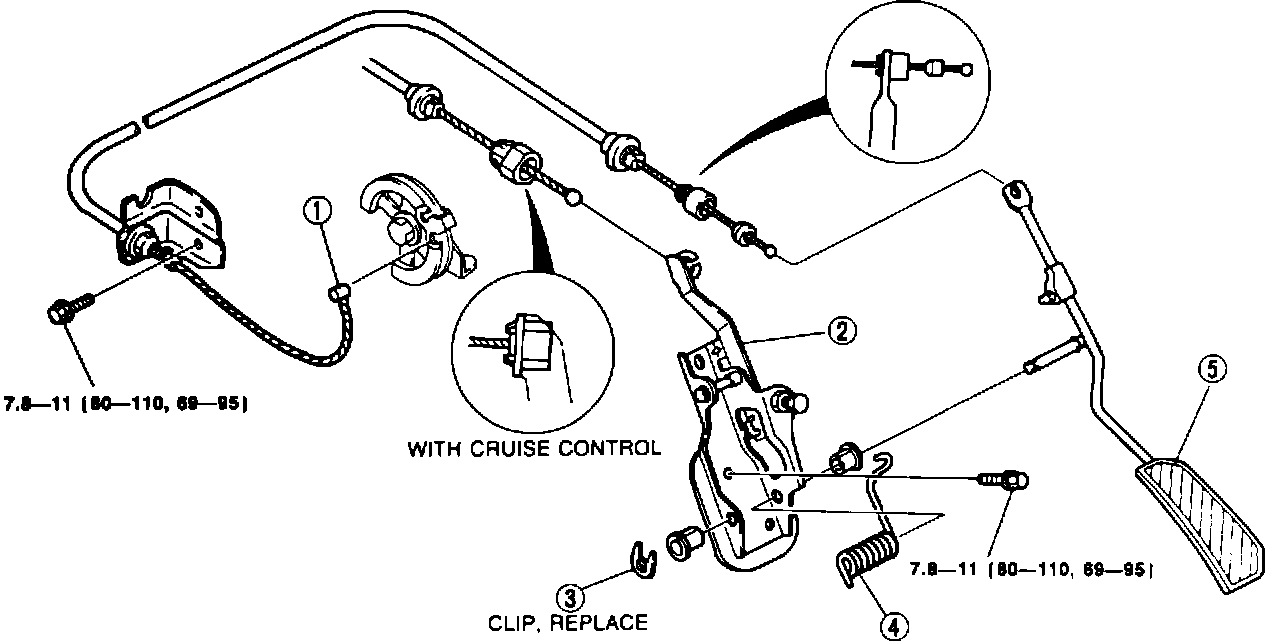

COMPONENTS

1. Accelerator cable.
2. Retainer.
3. Clip.
4. Return spring.
5. Accelerator pedal.
